Description

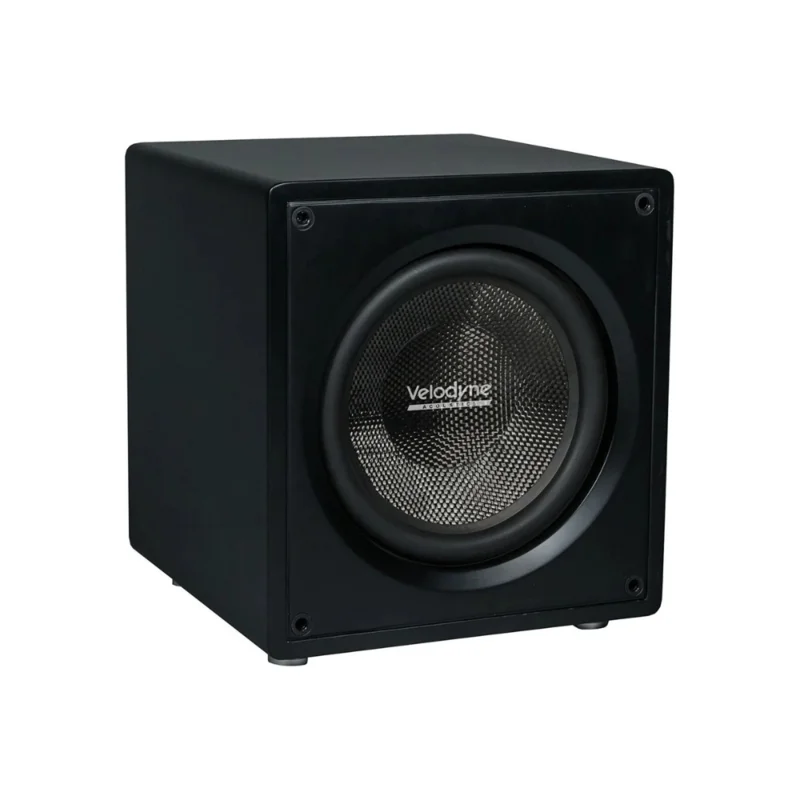

Velodyne Acoustics VI-Q Series
Low-frequency Multi-talent with Numerous Connections and the Latest Technology
The sealed cabinet design of the VI-Q series features everything that makes Velodyne Acoustics Subwoofers stand out in a modern way. In addition, the three models provide a particularly high-quality driver configuration and the iWoofer app, which gives users full control with room adjustment, a 25-band parametric equalizer, and presets.
Key Features
- The lightweight carbon fiber cone, in conjunction with the 3-inch voice coil, ensures optimum partial vibration behavior with low distortion values.
- High power with up to 650 W RMS Class-D amplification with 1200 W maximum power; highly efficient switching power supply with 2 x 25 A / 650 V MOSFET transistors.
- Solid front made of a 21-layer plywood board with a material thickness of a full 50 millimeters.
- Professional XLR connectors, RCA jacks for left and right channels, and high-level connectors for optimal connectivity.
Technical Specifications
| Driver | 15 front firing driver |
|---|---|
| Amplifier Class D | 1200 watt dynamic, 650-watt RMS |
| Overall Frequency Response ( 3 dB) | 23Hz 180 Hz |
| Overall Frequency Response ( 10 dB) | 18Hz 220 Hz |
| Low Pass Crossover | 50 Hz to 180 Hz (12 dB/Octave) |
| Phase | 0 / 180 degrees |
| Cabinet Design | 22mm HDF, 50mm front |
| Magnet Structure | Dual ferrite magnet motor |
| Woofer | 15 high excursion triple vented basket driver with carbon fiber membrane and convex cone |
| Voice Coil | Four Layer 3 / 76mm voice coil |
| Input | Gold plated Stereo/LFE RCA, Nickel plated XLR and High level in |
| Output | Gold plated Stereo/LFE RCA, Nickel plated XLR |
| Power Selector | Off / Auto / On |
| Finishes | Flat mat black paint |
| Dimensions (W/H/D) (includes feet and connectors) | 48cm x 48cm x 56 cm |
| Weight (approx) | 25 kg |
| Shipping Weight (approx) | 28 kg |
