Description

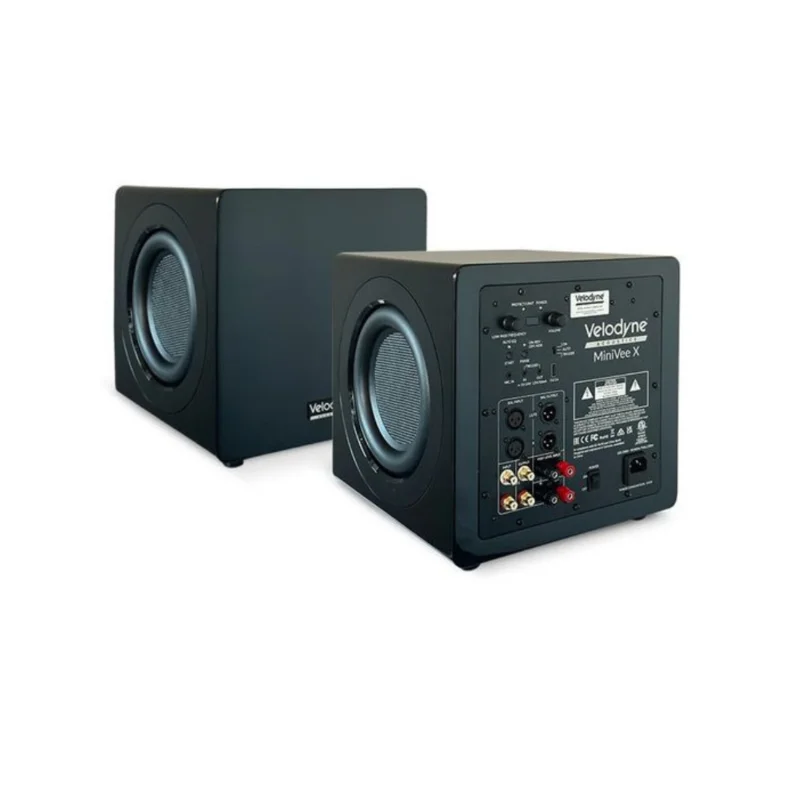

Velodyne Acoustics MiniVee X
Ultra-compact powerhouse with app control and automatic room correction
The very compact, closed cabinet of the MiniVee X offers unbeatable precision and is free from disruptive resonances thanks to internal bracing. The configuration of an active and a passive 8 driver also ensures minimal cabinet movement and a particularly precise, powerful bass. Thanks to the Velodyne Acoustics Auto EQ app and included microphone, room optimization is effortless.
Key Features
- Convenient adjustment and configuration with the Velodyne Acoustics Auto EQ app (available on the Apple Store and Google Play Store): In combination with the provided microphone, calibration and fully automatic room optimization is absolutely hassle-free. Numerous settings are also available to individually tailor the sound to your own preferences.
- Ultra-compact MDF cabinet with internal bracing to eliminate disruptive resonances.
- Powerful up to 800 W maximum output with Class D amplification; oversized ferrite magnets.
- Perfect connections for everyone: professional XLR connections, RCA input sockets for the left and right channels, and speaker terminals.
Technical Specifications
| Driver | All-new proprietary 8 long-throw driver with high-precision tuned overhung motor configuration with 8 passive radiator |
| Amplifier Class D | 350W RMS @ 0.5% THD, 600 W @ 2% THD, 800 W maximal |
| Frequency Response: Overall | 18 300 Hz |
| Frequency Response ( 3 dB) | 32 180 Hz |
| Low Pass Crossover | 30 to 200 Hz low-pass crossover with a 12 dB/octave slope |
| Phase | 0 to 180 degrees |
| Cabinet Design | High-gloss MDF |
| Magnet Structure | Dual ferrite magnet motor |
| Woofer | All-new proprietary 8 long-throw driver with high-precision tuned overhung motor configuration with 8 passive radiator |
| Voice Coil | 2 diameter Voice Coil with high current 4-layer high-purity copper wire windings |
| Input | Unbalanced Stereo/LFE RCA input, Balanced Stereo/LFE XLR Input, 3.5 mm mini jack 12 V trigger input, 5 V / 1 A Power USB socket to power external Wireless Signal transmitting system Wi-Connect II |
| Output | Unbalanced Stereo/LFE RCA output for easy daisy chain, Balanced Stereo/LFE XLR output for easy daisy chain, 3.5 mm mini jack trigger output with 5 seconds delay |
| Power Selector | Blue (power on) / Red (power standby) mode indicator LED |
| Finishes | Black |
| Dimensions (H/W/D) (includes feet and connectors) | 30 cm x 29 cm x 29 cm |
| Weight (approx) | 15 kg |
| Shipping Weight (approx) | 20 kg |
