Description

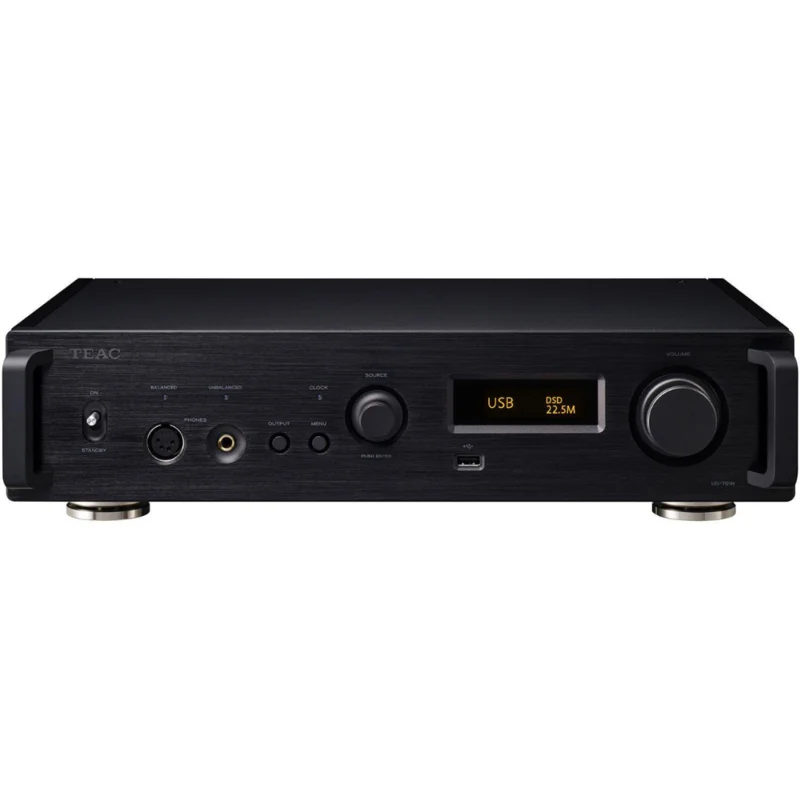

TEAC UD-701N Flagship USB DAC and Network Player
With USB DAC functions as the foundation, the TEAC UD-701N combines a network player, analog preamp, headphone amplifier, and more into one high-performance unit. Powered by the newly-developed TEAC (Delta Sigma) discrete DAC, this flagship model delivers an exceptional audio experience. It supports advanced formats like 22.5MHz DSD and 384kHz/32-bit PCM for superior digital-to-analog conversion, making it a versatile core component in both modern audio systems and high-quality headphone setups.
Key Features
- USB DAC & Network Player supporting 22.5MHz DSD and 384kHz/32-bit PCM
- TEAC Discrete DAC for precise digital-to-analog conversion
- Multiple Input Options including USB, Coaxial, Optical, Ethernet, and Bluetooth
- Analog Preamp with balanced and unbalanced analog audio inputs and outputs
- Headphone Amplifier supporting both balanced 4-pin XLR and unbalanced 6.3mm stereo jack
- High-Quality Audio Performance with frequency response from 5Hz to 80kHz and total harmonic distortion of only 0.002%
Technical Specifications
| Section | Specification |
|---|---|
| DAC | TEAC Discrete DAC x 2 |
| Upconvert | 2xFs / 4xFs / 8xFs (maximum 384kHz) |
| Analog Audio Inputs (Balanced) | XLR 1 pair, Input impedance: 50k, Maximum input level: 5Vrms |
| Analog Audio Inputs (Unbalanced) | RCA Pin 1 pair, Input impedance: 25k, Maximum input level: 2.5Vrms |
| Digital Audio Inputs (USB) | USB B-type 1, PCM: 16/24/32bit, DSD: 2.8M / 5.6M / 11.2M / 22.5MHz |
| Digital Audio Inputs (Coaxial) | RCA Pin 2 pairs, Input level: 0.5Vp-p, Input impedance: 75 |
| Digital Audio Inputs (Optical) | Rectangular (TOS) 2 pairs, Input level: 24.0 to 14.5dBm peak |
| Ethernet Input | RJ-45 1, Supported formats: PCM 16/24/32bit, DSD 2.8M/5.6M/11.2M/22.5MHz |
| USB Flash Drive Input | USB A-type 2 (Front 1, Rear 1), Supported file formats: FLAC, ALAC, WAV, AIFF, MQA, MP3, AAC |
| Bluetooth | Bluetooth 4.2, Supported profiles: A2DP, AVRCP, Supported codecs: LDAC, LHDC, AAC, SBC, aptX |
| Analog Audio Outputs (Balanced) | XLR 1 pair, Output impedance: 220, Maximum output level: 2.0Vrms (Fixed at 0dB) |
| Headphone Output (Balanced) | 4-pin XLR 1, Maximum output power: 700mW + 700mW (32 loaded) |
| Headphone Output (Unbalanced) | 6.3mm Stereo jack 1, Maximum output power: 500mW + 500mW (32 loaded) |
| Audio Performance | Frequency response: 5Hz to 80,000Hz (+1dB/5dB), THD: 0.002%, S/N ratio: 108dB (A-Weight, 1kHz) |
| Power | AC120V, 60Hz or AC220-240V, 50/60Hz, Power consumption: 40W, Standby power: 0.4W |
| Dimensions | 444(W) 111(H) 334(D) mm (including protrusions), Weight: 11.8kg |
| Operating Temperature | +5C to +35C |
| Operating Humidity | 5% to 85% (no condensation) |
| Included Accessories | Power cord, Remote control (RC-1330), AAA batteries 2, Owner’s manual, Foot pad 3 |
