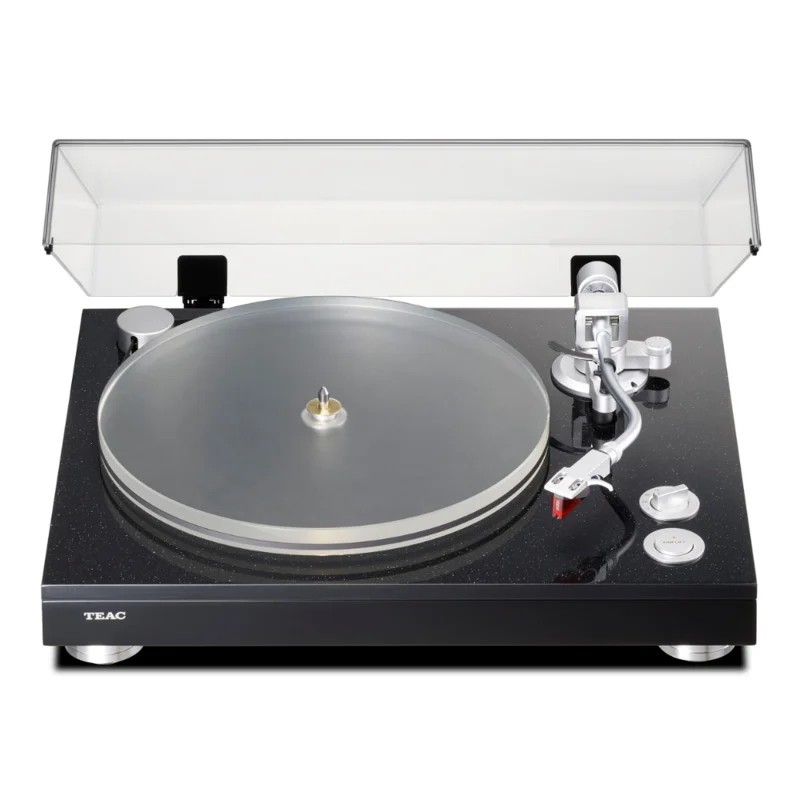

TEAC TN-5BB High-Performance Belt-Drive Analog Turntable
Are you ready to experience recordings the way the artists and engineers intended? The TEAC TN-5BB turntable delivers precision sound for your favorite records with its high-performance belt-drive system and XLR outputs. Designed to reproduce music with exceptional clarity, this turntable features a hybrid chassis made from synthetic marble, washi paper, and MDF materials, ensuring both functional suppression of unwanted vibrations and a stately modern design.
Featuring a 9-inch S-shaped universal arm with a knife-edge bearing and built-in XLR jacks, the TEAC TN-5BB enables you to enjoy your music with greater intensity and precision. Whether youre a casual listener or a vinyl enthusiast, this turntable unlocks the magic embedded in every note of your vinyl collection.
Key Features
- High-performance belt-drive analog turntable with XLR balanced output
- Hybrid chassis combining synthetic marble, washi paper, and MDF for enhanced sound quality
- 9-inch S-shaped universal tonearm with knife-edge bearing for superior tracking
- 20mm thick acrylic platter powered by Platter Rotation Sensing Servo System (PRS3)
- Supports MC balanced output for true audiophile-level sound reproduction
- Modern design with jet black synthetic marble and piano black finish
Technical Specifications
| Turntable Section | Details |
|---|---|
| Drive System | Rotation-detection-type high-precision control belt drive |
| Motor | DC motor |
| Rotation Speed | 33-rpm, 45rpm, 78rpm |
| Wow and Flutter | 0.1% or less |
| Platter | Acrylic, 30cm diameter |
| Tonearm Section | Details |
| Arm Type | Static-balanced S-shaped tone arm |
| Effective Arm Length | 223mm |
| Suitable Cartridge Weight | 4.0 to 13.0g (14 to 23g including head-shell) |
| Overhang | 18mm |
| Arm Height Adjustment Range | approx. 6mm |
| Cartridge Section | Details |
| Type | MM |
| Output Voltage | 5.5 mV (1kHz, 5cm/s) |
| Tracking Force | 1.8g |
| Cartridge Weight | 7.2g |
| Included Head-shell Weight | 10g (including screws, nuts, and wires) |
| Replacement Record Stylus Model | Ortofon 2M Red Stylus lifespan depends on use conditions but is usually about 1000 hours |
| Phono Outputs | Details |
| Balanced Connector | XLR 1 pair |
| Unbalanced Connector | RCA 1 pair |
| Power | Details |
| Power Supply | AC 100 to 240V, 50/60Hz (AC Adapter) |
| Power Consumption | 2.0W or less (0.3W at Standby) |
| Dimensions & Weight | Details |
| Overall Dimensions (with dust cover closed) | 450 148 351 mm / 17.1″ 5.8″ 13.8″ |
| Overall Dimensions (with dust cover open) | 450 420 410 mm / 17.1″ 16.5″ 16.1″ |
| Overall Dimensions (with dust cover removed) | 450 135 351 mm / 17.1″ 5.3″ 13.8″ |
| Weight | approx. 10.5kg / 23.2 lbs |
| Included Accessories | Details |
| 45RPM Adapter | 1 |
| Counterweight | 1 |
| Head-shell (Ortofon 2M Red installed) | 1 |
| Platter | 1 |
| Flat Belt | 1 |
| Pulley Cover | 1 |
| Dust Cover | 1 |
| Hinge | 2 |
| Foot Height Adjustment Washers | 4 |
| Arm Height Adjustment Hex Wrench | 1 |
| RCA Audio Cable | 1 |
| Ground Wire | 1 |
| AC Adapter (GPE018S-120100-Z) | 1 |
| Cartridge Alignment Gauge | 1 |
| User Manual | 1 |
