Description

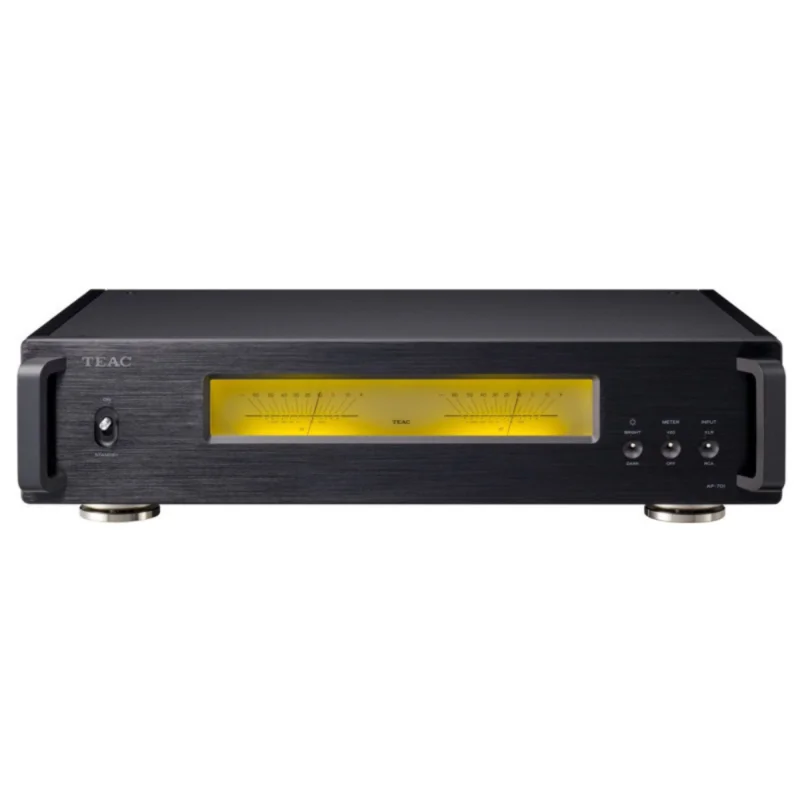

AP-701 Power Amplifier
The unconstrained dynamism of sound awakens fundamental instincts. The AP-701 merges all the elements desired in a power amplifier at a high level, creating a new standard.
Key Features
The AP-701 Power Amplifier offers a premium audio experience with its state-of-the-art features. It integrates high-capacity toroidal core power supply transformers, discrete buffer amplifiers, and Ncore modules to create a robust dual mono structure. The amplifier provides balanced input stages that preserve the dynamism of audio signals, ensuring your speakers deliver their full potential. The design also features a 3mm-thick heavy metal plate cabinet that uses vibration-controlling joints to reproduce a clear and vibrant sound.
Technical Specifications
| Category | Specification |
|---|---|
| Practical Maximum Output | 260W + 260W (4, 1kHz, JEITA), 170W + 170W (8, 1kHz, JEITA) |
| Rated Output | 230W + 230W (4, 1kHz, THD 1%), 125W + 125W (8, 1kHz, THD 1%) |
| Total Harmonic Distortion | 0.003% (8, 1kHz, 55W, JEITA) |
| S/N Ratio | 110dB (8, 1kHz, IHF-A) |
| Frequency Response | 10Hz to 50,000Hz (+0dB, -6dB, 8, JEITA) |
| Analog Audio Inputs | |
| Balanced Input Connectors | XLR (HOT: 2) 1 pair |
| Input Sensitivity | 1.6V |
| Input Impedance | 64k (Stereo mode), 32k (Bi-amp mode) |
| Unbalanced Input Connectors | RCA (gold-plated) 1 pair |
| Input Sensitivity (Unbalanced) | 1.6V |
| Input Impedance (Unbalanced) | 32k (Stereo mode), 16k (Bi-amp mode) |
| Speaker Output Connectors | Screw type 1 pair (gold-plate, compatible with Banana plug) |
| Compatible Speaker Impedance | 4 to 8 |
| External Control – Trigger Input | 3.5mm Mono mini jack 1, Input Level: 12V, 1mA |
| External Control – Trigger Output | 3.5mm Mono mini jack 1 |
| Power | AC120V, 60Hz, AC220-240V, 50/60Hz |
| Power Consumption | (120V) 97W, (230V) 95W |
| Standby Power | 0.4W |
| Overall Dimensions | 444 (W) 111.3 (H) 348.2 (D) mm (including protrusions) |
| Weight | 9.9kg |
| Operating Temperature | +5 to +35 |
| Operating Humidity Range | 5% to 85% (no condensation) |
| Storage Temperature Range | -20 to +55 |
| Included Accessories | Power cord, Foot pad 3, Owner’s manual |
