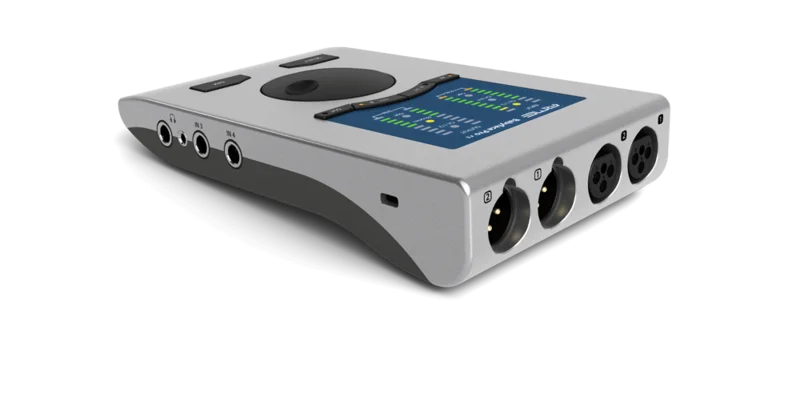

RME Babyface Pro FS

Description

Output level @ 0 dBFS: Balanced +19 / +4 dBu, unbalanced +13 / -2 dBu

DA, PHONES 3/4

AS DA Line Out, but:

• Output: 6.3 mm TRS jack, unbalanced
• Output impedance: 10 Ohm
• Output level at 0 dBFS, 1 kOhm load: +13 dBu
• Max power @ 0.1% THD: 60 mW
• Signal to Noise ratio (SNR): 114.8 dB RMS unweighted, 118 dBA
• Noise level: -101.8 dBu
• Output: 3.5 mm TRS jack, unbalanced
• Output impedance: 0.1 Ohm
• Output level at 0 dBFS, 1 kOhm load: +7 dBu
• Max power @ 0.1% THD: 90 mW
• Signal to Noise ratio (SNR): 114 dB RMS unweighted, 117 dBA
• Noise level: -107 dBu

MIDI

• 1 x MIDI I/O via breakout cable with 2 x 5-pin DIN jacks
• Galvanically isolated by optocoupled input
• Hi-speed mode: Jitter and response time typically below 1 ms
• Separate 128 byte FIFOs for input and output 25.3

DIGITAL

• Clocks: Internal, ADAT In, SPDIF In
• Jitter suppression of external clocks: > 50 dB (2.4 kHz)
• Effective clock jitter influence on AD and DA conversion: near zero
• PLL ensures zero dropout, even at more than 100 ns jitter
• Digital Bitclock PLL for trouble-free varispeed ADAT operation
• Supported sample rates: 28 kHz up to 200 kHz

DIGITAL INPUTS

ADAT Optical

• 1 x TOSLINK
• Standard: 8 channels 24 bit, up to 48 kHz
• Double Speed (S/MUX): 4 channels 24 bit 96 kHz
• Quad Speed (S/MUX4) : 2 channels 24 bit 192 kHz
• Bitclock PLL ensures perfect synchronisation even in varispeed operation
• Lock Range: 31.5 kHz 50 kHz
• Jitter suppression: > 50 dB (2.4 kHz)

SPDIF optical

• 1 x optical, according to IEC 60958
• Accepts Consumer and Professional format
• Lock Range: 27 kHz 200 kHz
• Jitter suppression: > 50 dB (2.4 kHz)

DIGITAL OUTPUTS

ADAT optical

• 1 x TOSLINK
• Standard: 8 channels 24 bit, up to 48 kHz
• Double Speed (S/MUX): 4 channels 24 bit 96 kHz
• Quad Speed (S/MUX4) : 2 channels 24 bit 192 kHz

SPDIF optical

• 1 x optical, according to IEC 60958
• Format Consumer (SPDIF) according to IEC 60958
• Sample rate 28 kHz up to 200 kHz

GENERAL

• Power supply: USB bus power or external power supply
• Idle power consumption: 2.8 Watts
• Typical power consumption: 3.7 Watts
• Max. power consumption: 5.4 Watts
• Current at 5 V bus power operation: 700 mA (3.7 Watts)
• Current at 12 V external power: 313 mA (3.7 Watts)
• Dimensions (WxHxD): 108 x 35 x 181 mm (4.25″ x 1.4″ x 7.1″)
• Weight: 680 g ( 1.5 lbs)
• Temperature range: +5 up to +50 Celsius (41 F up to 122F)
• Relative humidity: < 75%, non condensing
