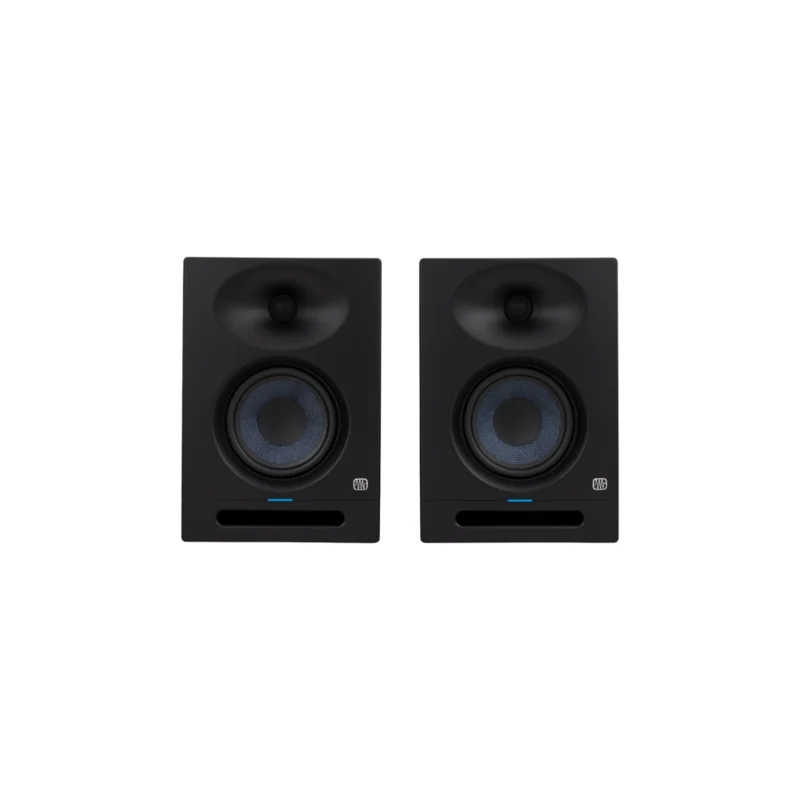

PreSonus Eris Studio 5 (Pair)

Description

5.25-Inch 2-Way Active Studio Monitors With EBM Waveguide

Building on the reputation of its award-winning predecessors, the Eris Studio 5 is a substantial update that delivers richer low-end and more controlled high-frequency response that reproduces every detail in your recordings with a natural sound unparalleled in its class. Designed for superior performance in both home studio and small professional mix rooms, the Eris Studio 5 combines flexible connectivity with sonic accuracy that puts it a class all its own.

The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response and wide 120-degree horizontal dispersion to create a broader sweet spot. Narrow vertical dispersion reduces reflections from your desk, and a silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you’ll hear the finest details in your mix.

The woven-composite low-frequency driver offers Eris’ signature tight, clear bass with plenty of punch. Its 80W of biamped power make the Eris Studio 5 more efficient than previous designs. The ported enclosure maximizes bass response and allows the Eris Studio 5 to reach down to an astonishing 48Hz – without a subwoofer!

Flexible input options let you connect almost any line-level source, from mixers to audio interfaces and more. You’ll have no problem hooking your Eris speakers up to virtually anything.

Features

• 5.25-inch woven composite low-frequency driver
• 1-inch, ultra-low mass, silk-dome, high frequency driver
• Crossover Frequency, 3.5kHz
• 120 x 60 EBM waveguide provides a sweet spot
• Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
• 80W, Class AB dual amplification
• 48Hz to 20kHz frequency response
• 102dB Peak SPL (@ 1meter)
• Acoustic Tuning Controls:
• Acoustic Space (Flat, -2dB, -4dB)
• High Frequency (6dB, center 10kHz, continuously variable)
• Mid Frequency (6dB, center 1kHz, continuously variable)
• Low Cut (Flat, 80Hz, 100Hz @ -12dB / octave)
• Inputs:
• XLR and 1/4-inch TRS balanced rear-panel inputs
• RCA unbalanced rear-panel inputs
• Protection:
• RF interference
• Output-current limiting
• Over-temperature
• Turn-on/off transient
• Subsonic filter
• Power Saver mode (engages after 40minutes)

Measurements

• Width8″ (20.32 cm)
• Height11.5″ (29.2 cm)
• Depth8.78″ (22.3 cm)
• Weight11.2 lbs. (5 kg)

Electronics

• Voltage Requirements100-240 VAC, 50-60 Hz
• Connection TypeIEC

Hardware

• Cabinet MaterialVinyl-Laminated, Medium-Density Fiberboard

Monitors

• ProtectionsRF Interference
  Output-Current Limiting
  Over-Temperature
  Turn-On/Off Transient
  Subsonic Filter
• Audio SwitchesAcoustic Space (Flat, -2 dB, -4 dB)Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
• Audio ControlsVolumeHigh Frequency (6 dB, center 10 kHz, continuously variable)Mid Frequency (6 dB, center 1 kHz, continuously variable)
• Peak SPL102 dB (@ 1 meter)
• Crossover Frequency3.5 kHz
• Monitor Inputs1- Balanced XLR, 1- Balanced 1/4 TRS, 1- Unbalanced RCA
• HF Transducers1 Ultra Low Mass, Silk Dome Tweeter
• LF Transducers5.25″ Woven Glass Fiber Composite
• Frequency Response48 Hz – 20 kHz
• Input Impedance10 k
• Coverage Pattern120 degree (H) x 60 degree (V)
• Monitor Amplifier Power80W Bi-Amped

Specifications

• Input Impedance10 k
