Description
Compatible Codecs : SBC, AAC
Wireless LAN
|
- Supported standards : IEEE 802.11 a/b/g/n/ac
- Frequency band used : 2.4 GHz / 5 GHz
|
Accessories
|
- DJM-A9
- Power Cord
- Warranty (for some regions)
- Quick Start Guide
- Precautions for Use
|
Specifications
Dimensions (W x D x H)
|
- 407.4 x 107.9 x 458.3 mm
- 407.4 x 140.7 x 458.3 mm (when the wireless antenna stands upright)
|
Sampling Rate
|
96 kHz |
CH input A/D Converter
|
32 bit |
Weight
|
10.2 kg |
MASTER, BOOTH, REC, SEND D/A Converter
|
32 bit |
S/N Ratio Line
|
105 dB |
S/N Ratio Phono
|
88 dB |
S/N Ratio Mic
|
79 dB |
Distortion
|
< 0.005 % (LINE) |
Channels
EQ/ISO
|
3 band |
EQ Range
|
Built-in, switchable 3-band equaliser: -26 dB ~ +6 dB dB |
Performance Control
Channels
|
4 |
MULTI I/O
|
USB (Type A) |
Sound Color FX
|
- Space
- Dub Echo
- Sweep
- Noise
- Crush
- Filter
|
Beat FX
|
- Delay
- Echo
- Ping Pong
- Spiral
- Helix
- Reverb
- Flanger
- Phaser
- Filter
- Triplet Filter
- Trans
- Roll
- Triplet Roll
- Mobius
|
Screen Display
|
Yes |
X-PAD
|
Yes |
rekordbox Quantize
|
Yes |
Crossfader
Crossfader Type
|
Magvel Fader |
Curve Assignable
|
Yes |
Fader Curve
|
3 |
Mic
Mic Connection
|
- XLR / 1/4-inch Combo Jack
- 1/4-inch TRS Jack
|
Mic EQ
|
2 band |
Mic EQ Range
|
-12 dB ~ +12 dB |
Phantom power
|
Yes |
Microphone Effects
|
- Echo
- Pitch
- Megaphone
- Reverb
|
Push-to-talk function
|
Yes |
Talkover
|
Dedicated button |
Talkover Attenuator
|
Yes |
Terminals
Inputs
|
- 4 DIGITAL (Coaxial)
- 4 LINE (RCA)
- 4 PHONO (RCA)
|
Send/Return
|
- 1 SEND (1/4-inch TS jack)
- 1 RETURN (1/4-inch TS jack)
|
LAN
|
1 |
Outputs
|
- 1 MASTER (XLR, RCA)
- 1 BOOTH (1/4 inch TRS Jack)
- 2 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
- 1 REC OUT (RCA)
- 1 DIGITAL (Coaxial)
|
USB
|
- 1 USB A port
- 2 USB B ports
- 2 USB C ports
|
* The specifications and design of this product are subject to change without notice.

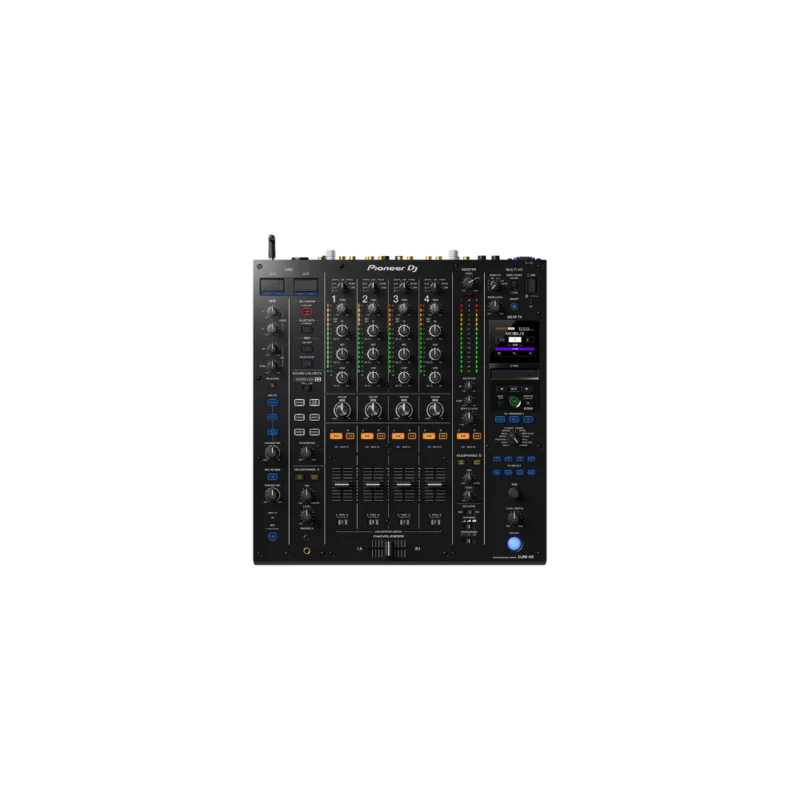

![Pioneer DJM-A9 [Mixer]](https://www.popdiscshop.com/wp-content/uploads/product-image/pioneer-djm-a9-mixer.webp)
