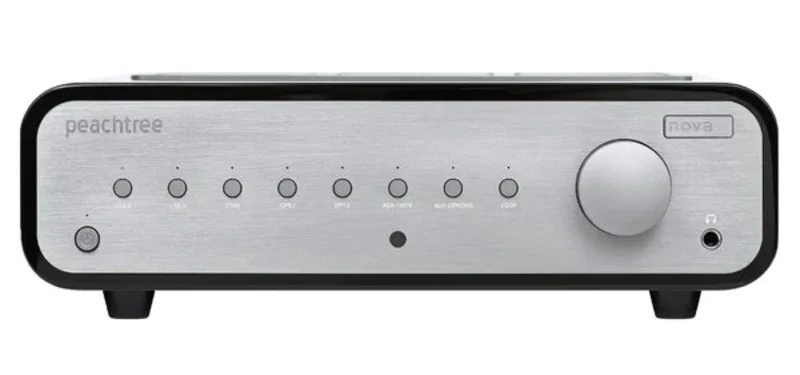

Nova150
Integrated Amplifier with DAC
The next generation of Nova!
150 watts per channel
Reference 9018K2M SABRE32 DAC
Moving magnet phono stage
Home Theater Bypass
Direct iOS input
Our nova150 Gives You Great Sound at a Low Price
The Integrated Amplifier Reimagined
In 2007 Peachtree Audio introduced a new integrated amplifierthat immediately and forever changed the amplifier landscape. This amplifier – our original Decco – was groundbreaking for its time. It had a unique industrial design with an aluminum front panel, a simple button and knob user interface and a rounded wood case finished with beautiful veneers. Inside, it housed a class A/B power amplifier, a tube buffer visible through a window in the front panel and, most significantly, a USB input with built-in DAC to accept a direct connection from a Mac or PC! “Computer audio” was born, with Peachtree’s Decco and Nova amplifiers on the leading edge, and with computer audio a defining part of Peachtree’s identity.
We now introduce nova 2.0 . . .a completely new generation of Peachtree integrated amplifiers that reimagines the original concept and takes it to an even higher level. Nova 2.0 is the culmination of everything we’ve learned as a leader in computer audio, plus a few new things we hadn’t gotten to – until now!
Technical Specifications :
| SPEAKER OUTPUT | |
|---|---|
| Compatible Speakers | 2.5-16 |
| Output Power (WPC, 8 | 4, <1% THD+N, AES17) | 150 | 250 |
| Dynamic Range (A-weighted) | 105dB |
| Damping Factor (1kHz, 8) | >600 |
| Frequency Response (20 – 20kHz) | <+/-0.4dB |
| Inter-Modulation Distortion | >80dB below fundamental |
| Total Harmonic Distortion (AES17, 1kHz, 4) | 0.008% |
| Channel Separation (1kHz, 8) | >90dB |
| PREAMP OUTPUT | |
| Output Voltage (rms) | 3.8V |
| Output Impedance | 100 |
| Signal-to-Noise Ratio (Analog | Digital Source, un-weighted) | 105dB | 105dB |
| Channel Separation (1kHz) | >115dB |
| Frequency Response (Analog | Digital Source, 8Hz-20kHz) | <0.1dB | <0.5dB |
| Total Harmonic Distortion | 0.003% (2V rms, 1kHz, un-weighted) |
| HEADPHONE OUTPUT | |
| Output Power (32, rms | peak) | 750mW | 1600mW |
| Output Power (300, rms | peak) | 130mW | 275mW |
| Output Power (600, rms | peak) | 64mW | 135mW |
| Output Impedance | 1 |
| Signal-to-Noise Ratio (Analog | Digital Source, un-weighted) | 107dB | 106dB |
| Dynamic Range (Analog | Digital Source, un-weighted) | 107dB | 100dB |
| Channel Separation (1kHz) | >100dB at 1kHz |
| Frequency Response (Digital source, 8Hz-20kHz) | <0.5dB |
| Frequency Response (Analog source, 8Hz-100kHz) | <0.1dB |
| Total Harmonic Distortion | 0.003% (2V rms, 1kHz, un-weighted) |
| USB-B Input | |
| Formats | PCM and DSD |
| PCM Sampling Rate and DSD Frequency Rate | 16-32 Bit, 44.1-384kHz PCM 2.8224-5.6448MHz DSD |
| COAX and OPT Inputs | |
| Formats | 16-24 Bit, 44.1-192kHz PCM |
| AUX Inputs | |
| Maximum Voltage (rms | peak-to-peak) | 3.5V | 10V |
| Impedance | 100k |
| PHONO Input | |
| Maximum Input Voltage (rms) | 120mV |
| Impedance | 47k |
| RIAA EQ | No rumble filter used |
| LOOP Output and Input | |
| Maximum Voltage (rms | peak-to-peak) | 3.5V | 10V |
| Impedance (input | output) | 100k | 100 |
| AC Power | |
| AC Input | 100-240VAC, 50/60Hz |
| Maximum Power Consumption | 400W |
| On Mode (Idle) Power Consumption | 15W |
| Standby Mode Power Consumption | <0.5W |
| Fuse | 100-120VAC: 6.3A/250V IEC time lag high breaking capacity 220-240VAC: 3.15A/250V IEC time lag enhanced breaking capacity |
| Physical | |
| Height (including feet) | 4.37 inches | 111 mm |
| Width | 14.02 inches | 356 mm |
| Depth (including volume knob and speaker binding posts) | 13.25 inches | 336.55 mm |
| Weight (shipping weight) | 15 lbs (19 lbs) | 6.8 kg (8.6 kg) |
