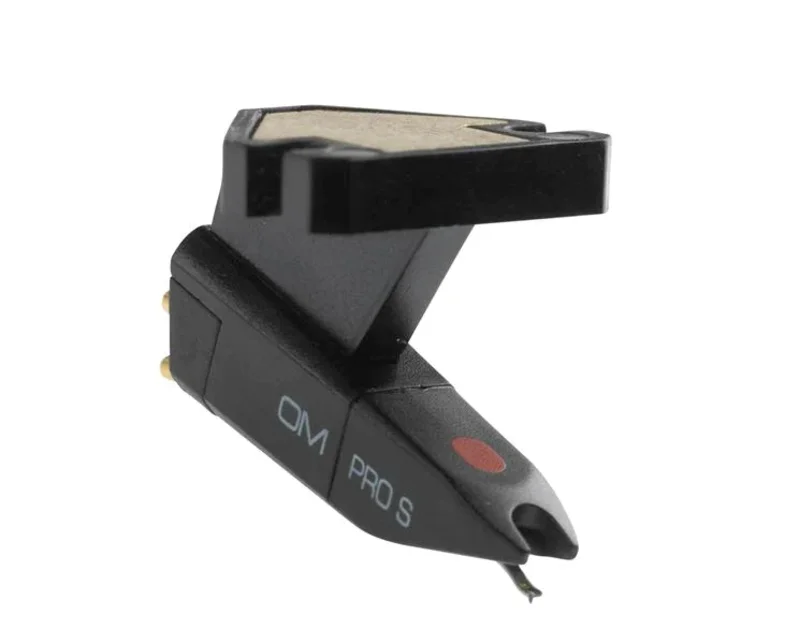

OM PRO S
New DJ? This entry-level cartridge is perfect for newcomers on the DJ scene who want to start off with decent but not too expensive equipment.
Technical Specifications
- Channel balance at 1 kHz-2 dB
- Output voltage at 1 kHz, 5cm/sec-5 mV
- Channel seperation at 1 kHz-20 dB
- Channel seperation at 15 kHz-15 dB
- Tracking ability at 315Hz at recommended tracking force-70 m
- Compliance, dynamic, lateral-7 m/m N
- Stylus tip radius-R 18 m
- Tracking force range-3 – 5 g
- Tracking force, recommended-4 g
- Tracking angle-20
- Internal impedance, DC resistance-750 Ohm
- Cartridge weight-5,0 g
- Reccomended load resistance-47 kOhm
- Internal inductance-450 mH
- Recommended load capacitance-200-600 pF
- Replacement stylus-Stylus PRO S
