Ortofon Concorde MKII Twin DJ

Description

Concorde MKII Twin DJ

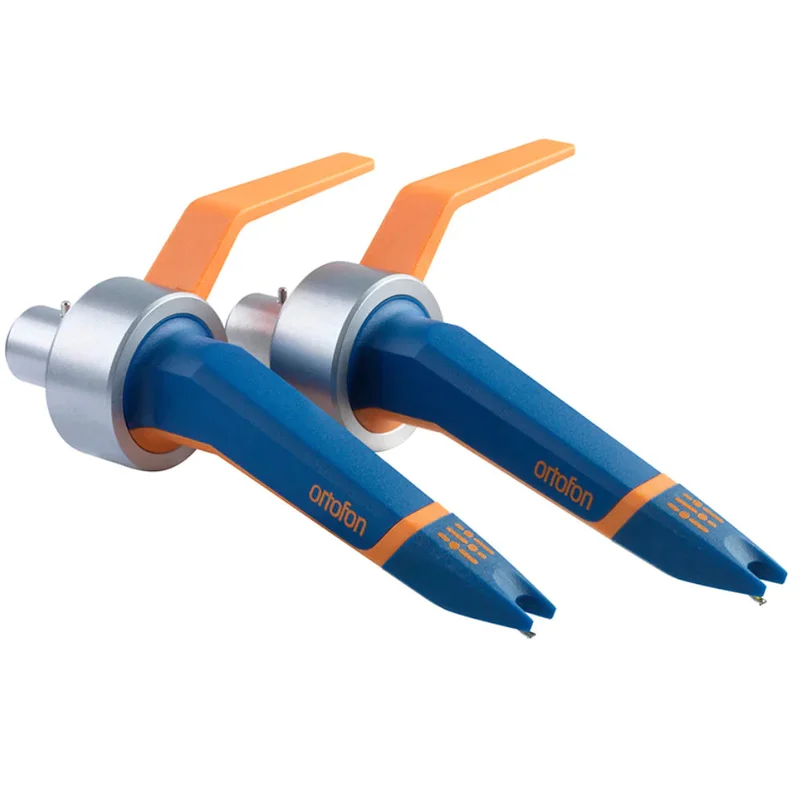

The Concorde TWIN includes two Concorde MkII DJ cartridges with preinstalled styli, all conveniently housed within a Flight case. The Concorde DJ is the jack-of-all-trades, boasting accurate sound reproduction and excellent groove handling. Not only does the cartridge have sufficient tracking ability, it also provides the DJs with the most needed stringency and very low record wear.

Technical Specifications

• Channel balance at 1 kHz-1 dB
• Output voltage at 1 kHz, 5cm/sec-6 mV
• Channel seperation at 1 kHz-22 dB
• Channel seperation at 15 kHz-15 dB
• Tracking ability at 315Hz at recommended tracking force-100 m
• Compliance, dynamic, lateral-14 m/m N
• Stylus tip radius-R 18 m
• Tracking force range-3 – 5 g
• Tracking force, recommended-4 g
• Internal impedance, DC resistance-700 Ohm
• Cartridge weight-18,5 g
• Reccomended load resistance-47 kOhm
• Internal inductance-450 mH
• Recommended load capacitance-200-600 pF
• Replacement stylus-Stylus CC MKII DJ
