Description

Compact. Control. Creativity

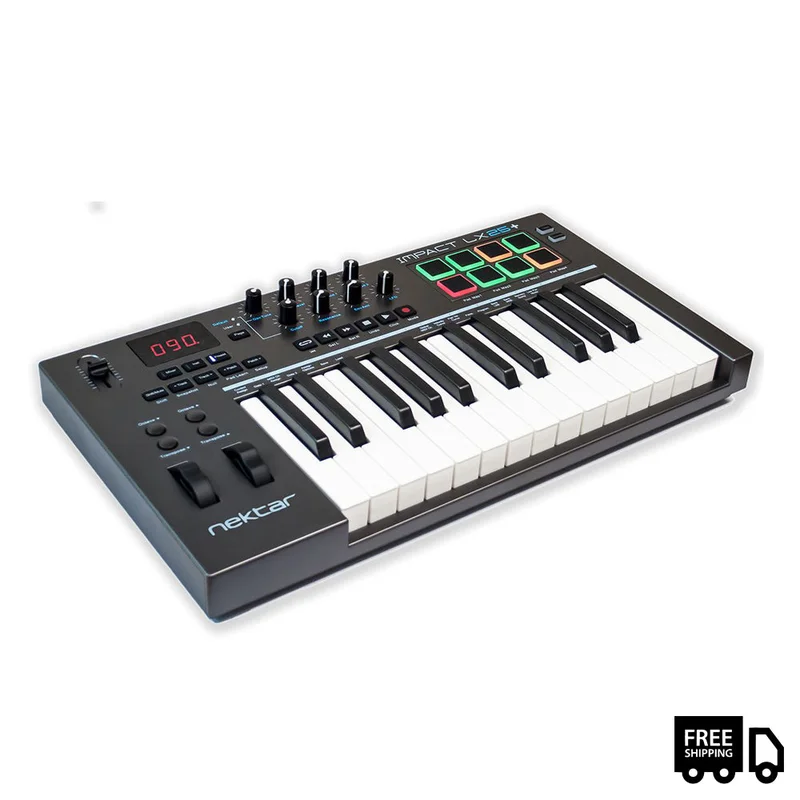

The Impact LX25+ MIDI controller is compact and portable yet jam-packed with intelligent and expressive performance control not even available on many premium products. Ever wanted a controller that hooks up automatically to your DAW? Impact LX25+ does exactly that.

Nektar DAW Integration custom designed for Bitwig, Cakewalk, Cubase, Digital Performer, FL Studio, GarageBand, Logic, Nuendo, Reaper, Reason and Studio One takes Impact LX25+ way beyond functionality normally offered by a USB MIDI controller keyboard. With Impact LX25+ the hard work is done, so you can focus on your creativity.

Technical Specifications :

Keyboard

• 25note velocity-sensitive synth-action keyboard
• 4 velocity curves + 3 fixed
• Pitch bend & Modulation wheels
• Octave shift buttons
• Transpose shift buttons

Controls

• 8 potentiometers
• 1 30mm fader
• 6 dedicated transport buttons
• 5 preset locations store control settings
• Page button (for Nektar DAW Integration only)
• Nektar DAW Integration for major DAWs

Pads

• 8 velocity sensitive pads
• Each pad LED illuminated with 4 color options: Green, Yellow, Orange and Red
• 4 velocity curves plus 3 fixed
• Note-learn
• Pads assignable notes and MIDI cc messages
• Load or Save to any of 4 pad maps
• Clips and Scenes LED buttons

Connections

• 1/4 TS jack foot switch input (MIDI Assignable)
• USB port on rear panel, and USB bus powered
• Connects to iPad via Apple Camera Connection Kit (not supplied)

Weight & Dimensions

Dimensions (L x D x H):
18 3/4 x 10 1/2 x 2 3/4
47,6 cm x 26,6 cm x 7 cm

Weight: 4 Lbs / 1,8 kg

System Requirements

• USB Class compliant (no driver needed)
• USB Power Requirement: 500 mA (100 mA in low power mode)
• Impact LX+: Apple iOS, Apple OSX 10.5 or higher, Windows XP, or higher, Linux (MIDI driver software required)
• Nektar DAW Integration:Mac OS X 10.7 or higher, Windows Vista, 7 & 8 or higher
