Description

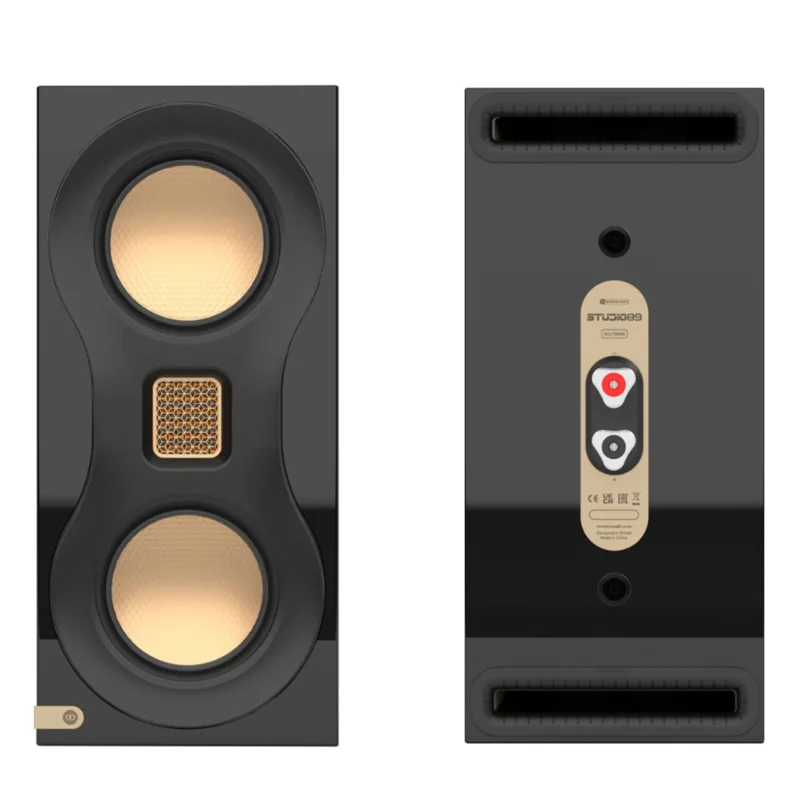

Studio 89 takes inspiration from the culturally explosive 1980s and Monitor Audios iconic Studio Series, but is a thoroughly modern loudspeaker. Inspired by individual expression and the culture that shapes it, Studio 89 is the loudspeaker for the new change-makers.
Studio 89 is a compact bookshelf model that houses many of the advanced acoustic technologies found in both Platinum Series 3G and Monitor Audios statement speaker, Hyphn. Powerful twin 4 RDT III C-CAM bass-mid drivers provide punchy, articulate and controlled bass that seamlessly blends with the MPD III high-frequency transducer. The sonic package delivers exceptionally lifelike HF clarity and taught MF/LF bass precision for a truly high-fidelity presentation.
Studio 89s cabinet is finished in a deep high-gloss black paint with gold-coloured drive units. This is a reference to the iconic Studio 15, which was the only model within the original Studio Series available in this stylish combination.
Studio 89 delivers a breathtakingly big sound, from a beautifully finished compact box.
Key Features
- Inspired by the iconic 1980s cultural revolution and Monitor Audios legendary Studio Series.
- Compact bookshelf design packed with advanced acoustic technologies from Platinum Series 3G and Hyphn.
- Powerful twin 4 RDT III C-CAM bass-mid drivers for punchy and controlled bass.
- MPD III high-frequency transducer for exceptional high-frequency clarity.
- Stylish high-gloss black finish with gold-coloured drive units, referencing the Studio 15 model.
- Delivers an impressive big sound in a compact form factor.
Technical Specifications
| Specification | Details |
|---|---|
| Sensitivity (2.83v @ 1m, Free-Field) | 86 dB |
| Recommended Amplifier Power (RMS into 4 Ohm, Music Signal) | 50 – 300 W |
| Continuous Power Handling (RMS into 6 Ohms, Pink Noise with 6dB Crest Factor) | 150 W |
| Nominal Impedance | 6 Ohms |
| Minimum Impedance (20 Hz to 20 kHz) | 4.2 Ohms @ 220 Hz |
| Drive Unit Complement | 2 x 41/4″ (108 mm) RDT III Bass-Mid Drivers, 1 x MPD III Tweeter |
| Frequency Response, Free-Field (-6dB) | 53 – 60 kHz |
| Frequency Response, In-Room (-6dB) | 48 Hz – 60 kHz |
| Maximum Peak SPL (single speaker @1m Z-Weighted) | 113 dB |
| Bass Alignment | Ported |
| Port Tuning Frequency | 58 Hz |
| Crossover Frequency | 2400 Hz |
| External Dimensions (including Terminals (H x W x D)) | 340 x 157 x 361 mm (133/8 x 63/16 x 143/16″) |
| Weight (each) | 7.6 kg (16 lbs 12 oz) |
