Description

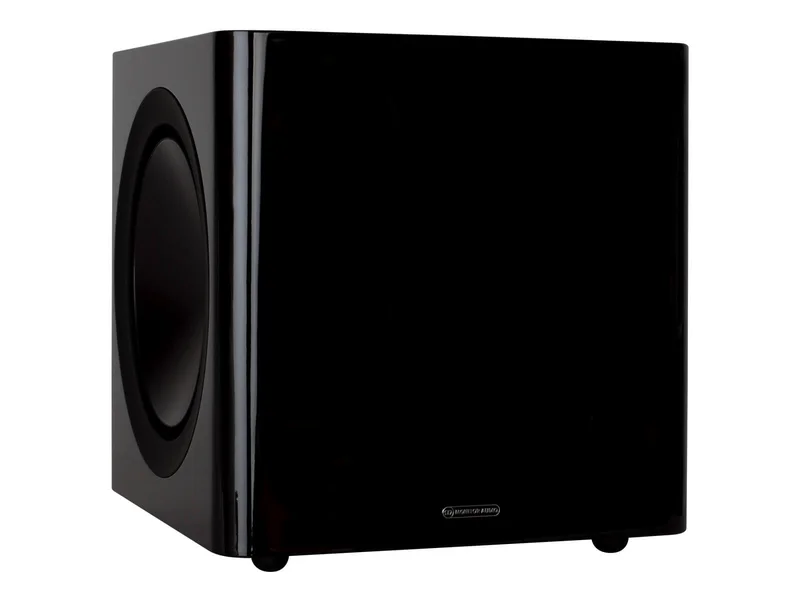

Radius 390

The Radius 390 comprises of colour-coded 10″C-CAMactive/ABR drivers, powered by a 200 W Class D amplifier. Enjoy rapid EQ optimisation from Impact, Music and Movie settings, and system automation via the 12 V trigger.

Technology

• 18 mm MDF cabinet construction with internal bracing
• Cool-running 200 W Class D amplifier with switch mode power supply (SMPSU)
• Twin side-firing 10″C-CAMdrivers – one active and one passiveABR
• Low pass filter switch for LFE or Stereo input selection
• Power switch with ON Auto- Off/ trigger settings
• Stereo/ LFE RCA inputs
• 3 x Pre-set EQ settings Music/Movie/Impact

System Format

Active sub-woofer system Auxiliary (ABR) loading. 18 mm MDF cabinet

Lower Frequency Limit

30 Hz (- 6 dB)

Upper Frequency Limit

Variable 40 120 Hz @ 24 dB/Octave

Amplifier Output

200 W @ 1% THD+N

Amplifier Classification

Class D amplifier with Switch mode power supply (SMPSU)

Bass EQ Profiles

Music / Movie / Impact

Phase Control

0 & 180 degrees

Auto Sensing

Line Level >3.5mV

Input Level Requirements

Standby after approximately 15 minutes if no signal sensed

Drive Unit Complement

1 x 10″ (250 mm)C-CAMlong throw driver 1 x 10″ (250 mm)ABR

Input Impedance

> 20 ohms

Mains Input Voltage

AC 110 – 120 V ~ 50/60Hz; AC 220 – 240 V ~ 50/60Hz(Factory Region Preset)

Dimensions (Including Amp and Feet (H x W x D))

348 x 330 x 345 mm (1311/16x 13x 129/16″)

Connection

Stereo RCA in, LFE in, 12v Trigger in(3.5 mm mono mini-jack)

Trigger Input

5 – 12v via 3.5mm mono mini-jack socket

Power Consumption

200 W / 0.5 W in Standby(ErP approved)

Weight (unpacked)

13.76 kg (30 lb 4 oz)
