Description

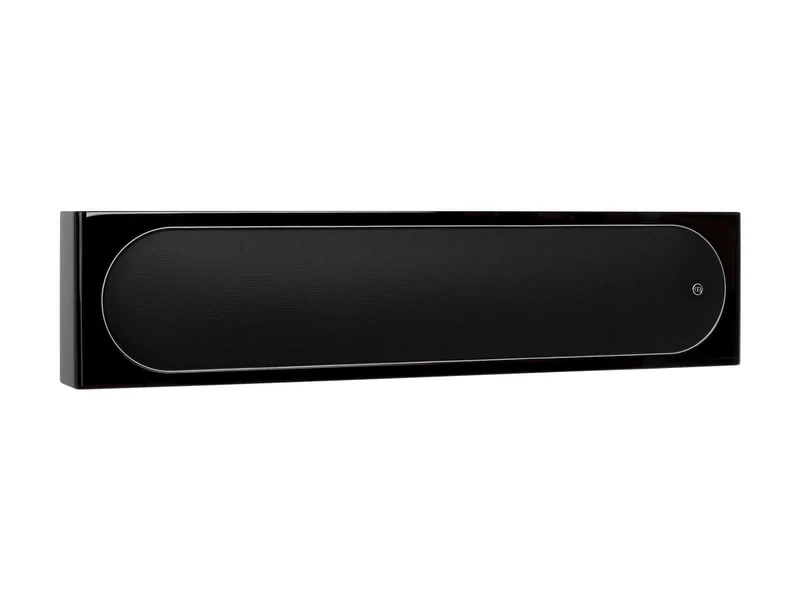

Radius 225

At just 65 mm in depth, the 225 is the perfect match with todays ultra-thin displays. Use it as a centre channel or main speaker: its acoustic design of twin4″C-CAMmid/bass drivers astride a 1″ C-CAM tweeter delivers superb accuracy from horizontal and vertical positions.

Technology

• 4″C-CAMbass driver – Radius featuresbass drivers with concave cone profiles, introduced byour top-of-the-range Platinum speakers and applied subsequentlyto Gold GX. Extensive research and FEA modelling have allowed us to perfect the relationship between the radiating diaphragm and its motor design, introducing largermotor sizes and voice coils for increased excursion, higher powercapability and reduced distortion.
• C-CAM Gold Dome tweeter -optimisedto deliver the finest and widest performance within the compactRadius cabinets. It benefits from a more efficient rear-ventingdesign, releasing air trapped and compressed at the back ofthe tweeter dome, and guiding it around the drive assembly toa rear-loading chamber.
• HiVe IIport design -Straight from Platinums design blueprint, the HiVe reflex portmakes its Radius debut. Its shaped to have the same effect onairflow as a gun-barrel on a bullet. Rifled grooves inside the porthelp to accelerate the flow and reduce turbulence, so air movesin and out of the port more efficiently, for a faster more dynamicbass response.
• Single through-bolt driver fixing provides mechanical de-coupling and enhanced mid-band clarity and resolution. The through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet.
• Comes complete with a dedicated wall bracket.

Frequency Response

80 Hz 35 kHz

Sensitivity (1W@1M)

87 dB

Nominal Impedance

6 ohms

Power Handling (RMS)

100 W

System Power Handling (RMS)

150 W

Recommended Amplifier Requirements

40 150 W

Maximum SPL

107 dBa

Bass Alignment

Bass reflex – Front ported

Drive Unit Complement

2 x 4″ (100 mm)C-CAMcone bass/mid driver
1 x 1″ (25 mm) C-CAM Gold Dome tweeter

Cabinet Dimensions (H x W x D)

140 x 610 x67 mm (51/2x 24 x 25/8″)

Cabinet Dimensions (Including Grille and Terminals (H x W x D))

140 x 610 x 77 mm (51/2x 24 x 31/16″)

Cabinet Dimensions (Including Grille and Bracket (H x W x D))

140 x 610 x 84 mm (51/2x24x 35/16″)

Pre-Construction Bracket

Dedicated bracket included

Weight

4.2 kg (9 lb 4 oz)
