Description

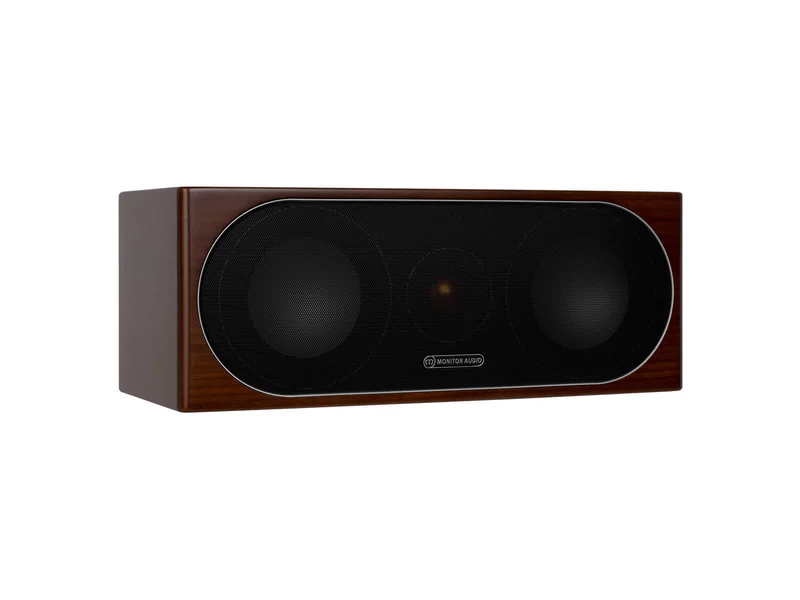

Radius 200

Designed for rack or shelf mounting in a dedicated home theatre system. Placed front and centre in a serious AV system, twin 4″C-CAMmid/bass drivers astride a 1″ C-CAM tweeter result inthe compact Radius 200 anchoring the entire sound field with life-like fidelity.

Technology

• Ultra compact dedicated centre speaker
• DualC-CAMbass drivers with C-CAM tweeter in MTM style configuration -Radius featuresbass drivers with concave cone profiles, introduced byour top-of-the-range Platinum speakers and applied subsequentlyto Gold GX. Extensive research and FEA modelling have allowed us to perfect the relationship between the radiating diaphragm and its motor design, introducing largermotor sizes and voice coils for increased excursion, higher powercapability and reduced distortion.
• C-CAM Gold Dome tweeter -optimisedto deliver the finest and widest performance within the compactRadius cabinets. It benefits from a more efficient rear-ventingdesign, releasing air trapped and compressed at the back ofthe tweeter dome, and guiding it around the drive assembly toa rear-loading chamber.
• HiVe IIport design -Straight from Platinums design blueprint, the HiVe reflex portmakes its Radius debut. Its shaped to have the same effect onairflow as a gun-barrel on a bullet. Rifled grooves inside the porthelp to accelerate the flow and reduce turbulence, so air movesin and out of the port more efficiently, for a faster more dynamicbass response.
• Single through-bolt driver fixing provides mechanical de-coupling and enhanced mid-band clarity and resolution. The through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet.

Frequency Response

60 Hz 35 kHz

Sensitivity (1W@1M)

86 dB

Nominal Impedance

6 ohms

Power Handling (RMS)

100 W

System Power Handling (RMS)

150 W

Recommended Amplifier Requirements

40 150 W

Maximum SPL

106 dBa

Bass Alignment

Bass reflex – Rear ported

Drive Unit Complement

2 x 4″ (100 mm)C-CAMcone bass/mid driver
1 x 1″ (25 mm) C-CAMGold Dome tweeter

Cabinet Dimensions (H x W x D)

125 x 330 x 140 mm (415/16x 13 x 51/2″)

Cabinet Dimensions (Including Grille and Terminals (H x W x D))

125 x 330 x 164 mm (415/16x 13 x 67/16″)

Weight

3.6 kg (7 lb 14 oz)
