Description

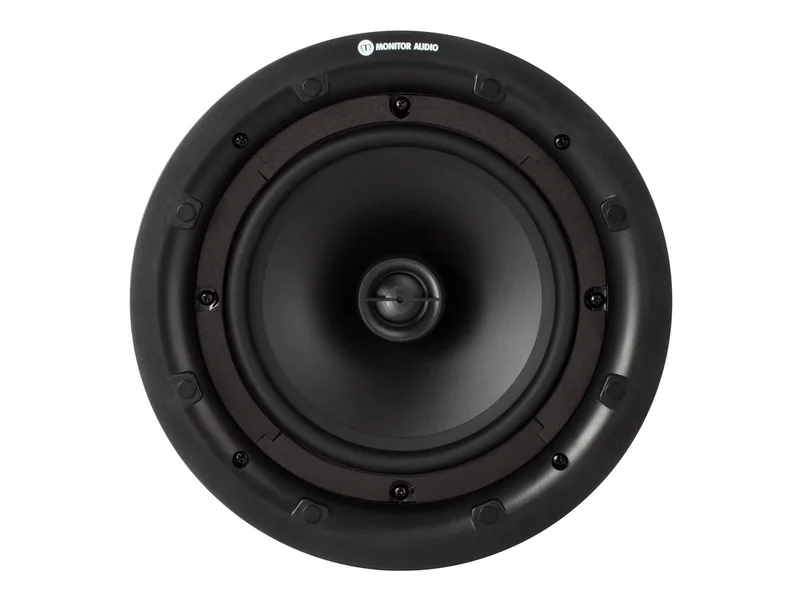

Pro-80
The Pro-80 ispriced for entry-level but its material and design sophistication is of a higher order, meeting Monitor Audios world-famous quality standards.
Its optimised driver systems feature the brands trusted MMP II cone bass units co-axially aligned with a 1″ (25 mm) pivoting fabric dome tweeter, which can be directed for maximum clarity.
The new Prodesigns connect through gold-plated push terminals and install easily via robust and reliable dogleg fixings, which are covered by a magnetic trimless grille for heightened convenience and beautiful flush-fitted concealment.
Technical Specifications :
|
Frequency Response (-6dB) |
60Hz – 20KHz |
|
Impedance (nominal) |
8 Ohm |
|
Sensitivity (1W @ 1M) |
87dB |
|
Maximum SPL |
103.8dBA |
|
Power Handling (RMS) |
40W |
|
Recommended Amp Requirements |
10-40W |
|
Drive Unit Complement |
8″ MMP II cone bass-mid driver 1 x 25mm (1″) fabric soft dome tweeter |
|
Connection |
Gold plated push style terminal |
|
Overall Diameter (including grille) |
273mm |
|
Overall Depth (including grille) |
103mm |
|
Cut Out Diameter |
247mm |
|
Mounting Depth |
98mm |
|
Fixing Type |
4 position dog leg fixings |
|
Construction Materials |
ABS (UL94 rated, RoHS2 Compliant) Painted steel grille |
|
Pre-Construction Bracket |
CB8 (Green) |
