Description
Product Overview

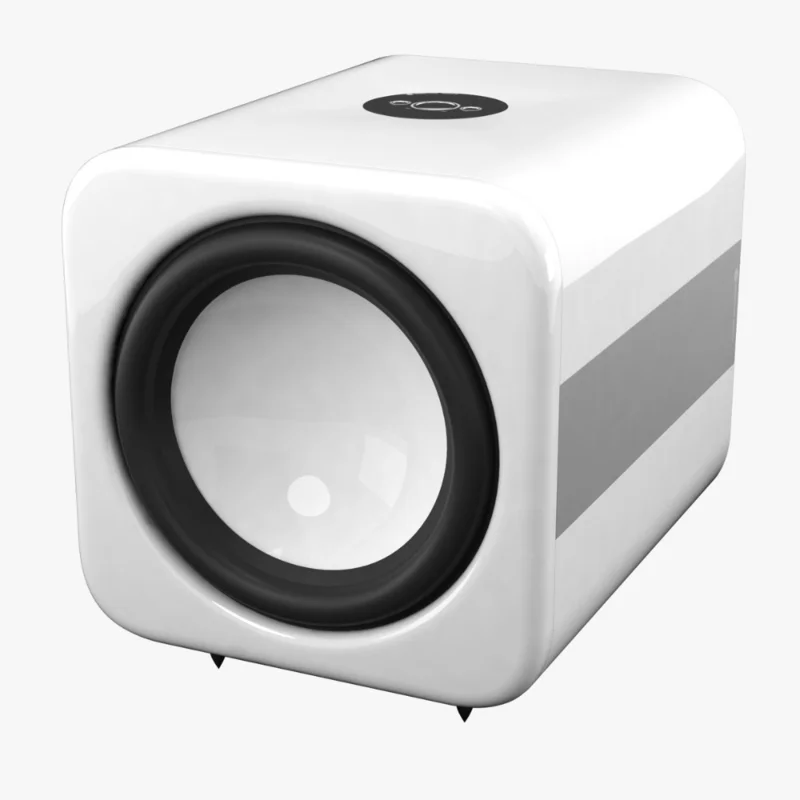

Introducing the compact, front-firing 12″ Subwoofer, designed with a C-CAM driver and powered by a 500-watt Class D amplifier. This subwoofer combines the best of Monitor Audio technology in a stylish, compact cabinet finished with elegant aluminium side trims. Perfect for delivering powerful bass in a sleek package, this subwoofer enhances any audio system with both style and performance.
Key Features
- 12″ Front-Firing C-CAM Driver: Features triple suspension and a 3″ long throw voice coil for superior bass performance.
- 500 Watt Class D Amplifier: Delivers robust power and efficiency for an enhanced listening experience.
- 12v Trigger Input: Allows for auto-activation when connected to a compatible A/V receiver or processor.
- High-Efficiency Power Supply: Features a switch mode power supply for maximum energy efficiency.
- Compact Sealed Cabinet: Designed for space-saving while still providing optimal sound quality.
- Top-Mounted Control: Easy-to-access volume and EQ controls for simple setup and adjustment.
- Permanently Fitted Floor Spikes: Can be covered with a heavy-duty rubber cover for solid or hard wood flooring.
- Luxurious Finish: Available in a high gloss metallic black or metallic pearl white finish for a sleek look.
Technical Specifications
| Specification | Details |
|---|---|
| Amplifier Output | 500 W (RMS) / 1000 W (Peak) |
| Lower Frequency Limit | 27 Hz (EQ1) / 21 Hz (EQ2) |
| Upper Frequency Limit | 40 120 Hz (Variable) |
| Low Pass Filter Alignment | Active 4th order 24 dB/octave (two-stage filter) |
| Cabinet Design | Sealed Cabinet with 25 mm MDF construction and internal bracing |
| Amplifier Classification | Class-D Amplifier |
| Drive Unit Complement | 1 x 12″ C-CAM sub-woofer driver featuring triple suspension and 3″ long throw voice coil |
| Dimensions (Excluding Feet) | 340 x 340 x 410 mm (13 3/8″ x 13 3/8″ x 16 1/8″) |
| Dimensions (Including Feet) | 380 x 340 x 410 mm (14 15/16″ x 13 3/8″ x 16 1/8″) |
| Mains Input Voltage | 100 120 Vac, 220 240 Vac, 50/60 Hz |
| Input Impedance | 20 ohms |
| Weight (Unpacked) | 22.56 kg (49 lb 12 oz) |
| Sold As | Single Unit |
