Description

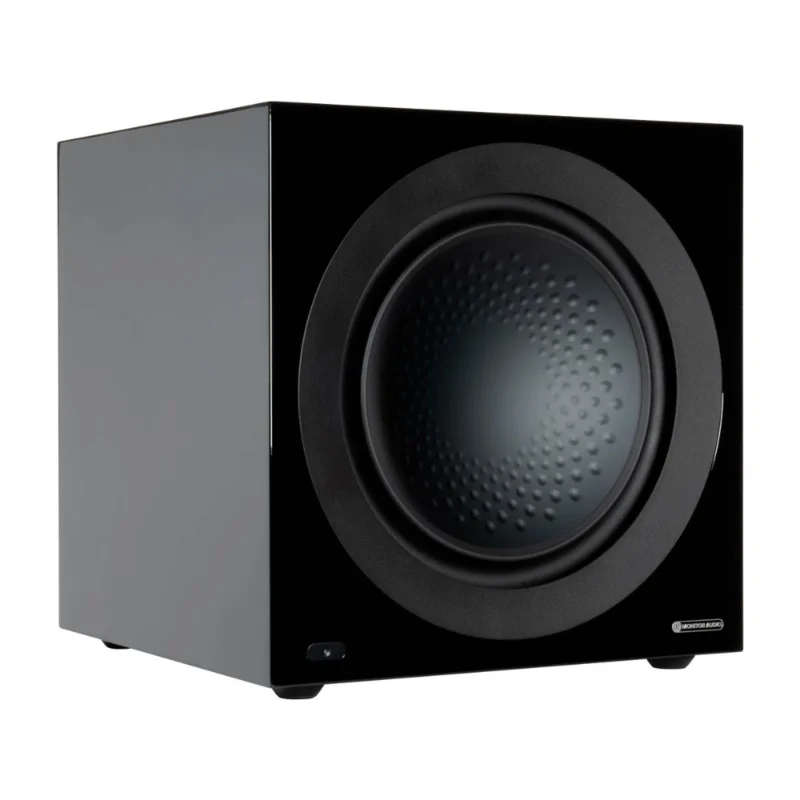

Anthra W15 Subwoofer
Engineered to deliver the deepest bass in the largest of spaces, the Anthra W15 subwoofer features a massively powerful 1,500 Watt Class-D amplifier driving a 15 (38cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W15 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.
Key Features
- Massive Amplifier Power: 1,500 Watt Class-D amplifier for deep, rich bass.
- 15 Rigid Surface Technology II (RST II) Driver: High-excursion driver delivers powerful sound performance.
- Flexible Setup: Can be used standalone or linked with up to three other subwoofers for an enhanced experience.
- Full-Colour LCD Display: Easy subwoofer setup and EQ preset selection on the back panel.
- Advanced Configuration: Configure DSP settings and multi-sub setup with the MaestroUnite app.
Technical Specifications
| System Format | Active – Sealed Cabinet |
|---|---|
| Drive Unit Complement | 1x 15″ (381 mm) High Linear-Excursion Triple Suspension Driver |
| Amplifier Classification | High-Efficiency Class-D |
| Lower Frequency Limit | -6dB @16Hz |
| Upper Frequency Limit | (LPF Off) -6dB @400Hz |
| Driver Excursion (pk-pk) | 50 mm |
| DSP | 28 Bit 50 MIPS Configurable through MaestroUnite |
| Analogue Digital Conversion | Autoranging Input with 10Vrms maximum input |
| Amplifier Output Power, 240Vac | Instantaneous: 2500 W* Continuous short-term: 1400 W** |
| Amplifier Output Power, 120Vac | Instantaneous: 2500 W Continuous short-term: 1400 W |
| LED UI Control | Brightness, On-Off |
| Phase Control | 0-360 Degrees measured at LPF Crossover |
| Low Pass Filter | 20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct |
| Custom EQ | Configurable through MaestroUnite; 3 pre-defined EQ curves and 3 custom EQ curves |
| Volume Level | Wide adjustable input gain |
| Inputs | Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE) Mono/LFE Balanced XLR |
| Outputs | Stereo unbalanced outputs with unbuffered throughput from RCA Inputs Mono/LFE Balanced XLR outputs with unbuffered throughput from XLR Input |
| Mains Input Voltage | Universal Mains, 85-265VAC |
| External Dimensions (without feet) (HxWxD) | 439 x 439 x 439 mm |
| Power Consumption | 550 W |
| Cabinet Construction | Braced 25 mm thick MDF with 36 mm front baffle |
| Grille | Cloth covered magnetically attached Grilles |
| Weight | 35.41 kg (78 lb 1 oz) |
* Maximum RMS output for an instantaneous signal
** Sinewave for 10 seconds
