Description

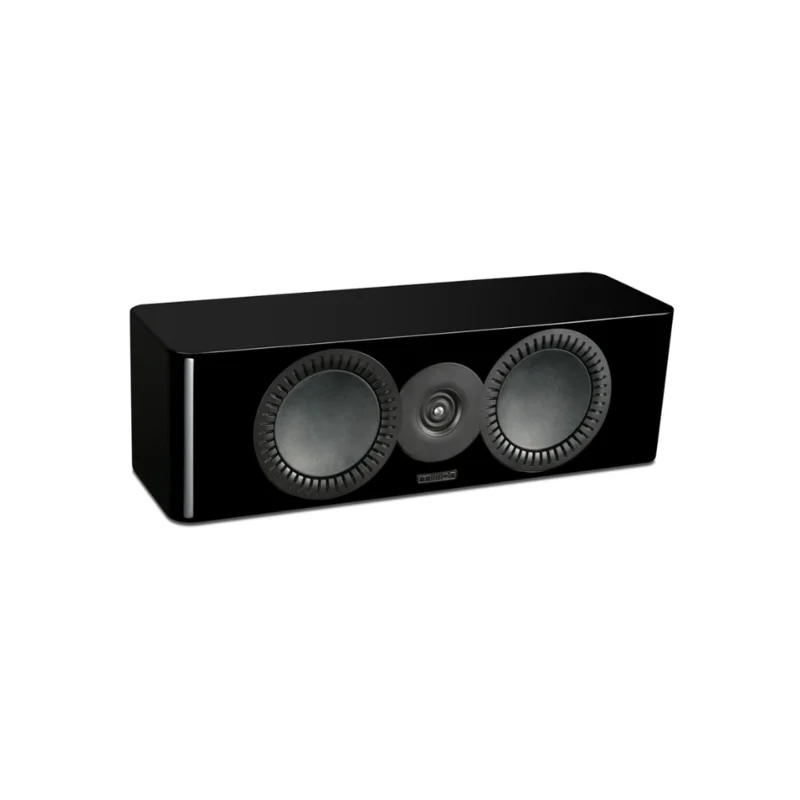

QX-C Centre Speakers

Description

QX-C Centre Speakers Mission bring its 40 years of audio expertise to this all new speaker range. The QX series has a striking look and impressive performance offering amazing value for both Hi-Fi and AV setup. Advanced new designs and extensive listening tests have evolved loudspeakers that offer exciting and dramatic performance, no matter what style of music and movies you prefer. Five core Hi-Fi models two bookshelf designs and three floorstanding speakers are joined in this Mission QX Series by a dedicated centre speaker, with a 2-way, wide-distribution surround speakers and an active subwoofer.

Technical Specs

General Description

• Type: 2-Way Center Speaker
• Enclosure Type: Bass Reflex

Performance

• Sensitivity (2.0V @ 1m): 88dB
• Recommended Amplifier Power: 25120W
• Peak SPL: 95dB
• Nominal Impedance: 4 (Compatible with 8)
• Minimum Impedance: 3.9
• Frequency Response (+/-3dB): 58Hz 24kHz
• Bass Extension (-6dB): 50Hz
• Crossover Frequency: 1.6kHz

Drivers

• Bass Drivers: 5″ (135mm) Long Fiber Composite Cone 2
• Treble Driver: 1.5″ (38mm) Textile Ring Dome

Cabinet

• Cabinet Volume: 8.1L

Dimensions

• Height (with plinth): 175mm
• Width: 550mm
• Depth (with terminals): 180mm (170mm + 10mm)
• Carton Size: 640 265 280 mm

Weight

• Net Weight: 8.6 kg per unit
• Gross Weight: 9.7 kg per carton
