Description

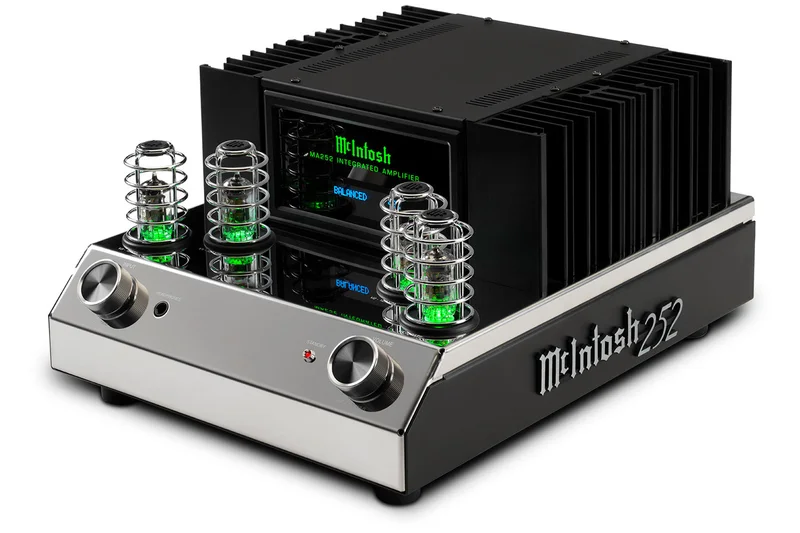

MA252 2-Channel Hybrid Integrated Amplifier

• Includes our Hybrid Drivetechnology that uses the best of vacuum tubes and solid state to produce the best sound performance
• Vacuum tube preamplifier and solid state power amplifier
• 100 Watts into 8 Ohms
• 160 Watts into 4 Ohms

The MA252 Integrated Amplifier is the first hybrid integrated amplifier from McIntosh. Taking retro design cues from the legendary McIntosh MC275 Vacuum Tube Amplifier, the MA252 combines the best of vacuum tube and solid state circuit design to create an amplifier thats both visually and sonically stunning.

“The McIntosh MA252 offers an alluring combination of tube romanticism and solid-state resolution and authority… The ability to connect the listener to the music makes this tube-solid state integrated a special component by any standard. I could happily listen to the MA252 for a long, long time.”

– Part Time Audiophile

Technical Specifications :

ELECTRONIC SPECIFICATIONS

• Power Output per Channel100 Watts into 8 Ohms
  160 Watts into 4 Ohms
• Number of Channels2
• Speaker Impedance4 or 8 Ohms
• Rated Power Band20Hz to 20kHz
• Total Harmonic Distortion0.03%
• Dynamic Headroom1.8dB
• Frequency Response +0,-0.5dB20Hz to 20kHz
• Frequency Response, +0, -3dB10Hz to 100kHz
• Sensitivity Phono (Moving Coil)N/A
• Sensitivity Phono (Moving Magnet)3.0mV
• Sensitivity High Level (Balanced / Unbalanced)0.6V/0.3V
• Sensitivity (Power Amp input)N/A
• Signal To Noise Ratio (Moving Coil)N/A
• Signal To Noise Ratio (Moving Magnet)80dB
• Signal To Noise Ratio (High Level)97dB
• Signal To Noise Ratio (Power Amp input)N/A
• Input Impedance (Balanced / Unbalanced)20K/20K
• Damping Factor8 Ohms: >200
  4 Ohms: >100
• Maximum Output (Balanced / Unbalanced)8V Unbalanced

CONNECTIVITY

• Balanced Input1
• Unbalanced Input2
• Phono Input Moving Coil0
• Phono Input Moving Magnet1 (fixed loading)
• Upgradeable Digital Audio ModuleNo
• Digital Coaxial Input0
• Digital Optical Input0
• Digital MCT Input0
• Digital USB Input0
• HDMI (ARC) Input0
• Balanced Variable Output0
• Unbalanced Fixed Output0
• Unbalanced Variable Output0
• Headphone Output1/4″ High Drive
• Subwoofer Output1 (mono)
• AM/FM Tuner optionNo
• Home Theater PassThruNo
• Unbalanced Analog Connector TypeStandard
• Speaker Binding Post TypeStandard
• Service Port0

DIGITAL AUDIO SPECIFICATIONS

• Digital-to-Analog Converter (DAC) TypeN/A
• Digital Coaxial Input Sample RateN/A
• Digital Optical Input Sample RateN/A
• Digital MCT Input Sample RateN/A
• Digital USB Input Sample RateN/A

CONTROL

• Tone ControlsBass and Treble
• Tone Bypass and Input AssignYes
• RS232 Control InputNo
• Power Control Output1
• Rear Panel Data Port1
• Rear Panel IR Sensor InputNo
• Input Level MatchYes

GENERAL SPECIFICATIONS

• Vacuum Tube or Solid StatePreamplifier: Vacuum Tube
  Power Amplifier: Solid State
• Output TypeDirect Coupled
• Output MetersNo
• Dual Layer ChassisYes
• Chassis FinishPolished stainless steel
• McIntosh Monogrammed HeatsinksYes
• Power Requirement120V 50/60Hz, 3.7A
• Standby Power Requirement<0.5 Watts

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)12″ (30.5cm) x 7-5/8″ (19.4cm) x 16-1/2″ (41.9cm)
• Unit Weight28 lbs (12.7 kg)
• Shipping Weight37 lbs (16.8 kg)
