Description

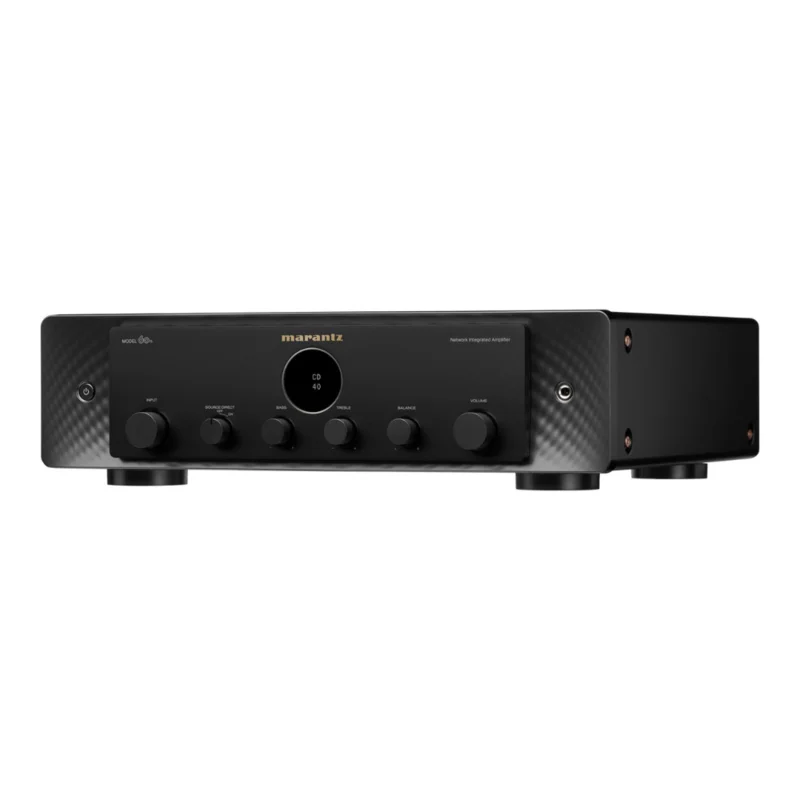

Marantz MODEL 60n Network Integrated Amplifier
The Marantz MODEL 60n is a network integrated amplifier engineered for exceptional hi-fi performance, offering comprehensive connectivity and advanced streaming features. Whether you’re streaming high-resolution audio through HEOS Built-in, connecting your CD player or turntable, or adding a subwoofer to complete your setup, the 60n brings power and precision to your home audio experience. This versatile amplifier supports a wide range of audio sources and ensures audiophile-grade sound quality.
Key Features
- 60W per channel for powerful and dynamic sound
- HEOS Built-in for high-resolution streaming and multi-room audio
- HDMI ARC for easy connection to your TV
- Marantz HDAM circuits for superior audio performance
- Hi-Res audio support for top-tier sound quality
- CD and MM phono inputs for diverse source connectivity
Technical Specifications
| Specification | Details |
|---|---|
| Amplifier | Channels: 2 |
| PSU Transformer | Toroidal |
| Speaker A / B | No |
| Speaker Terminals | Marantz SPKT-1+, 2 Terminals |
| Power Output (8 / 4 Ohm RMS) | 60 W / 80 W |
| Topology | Class A/B |
| Current Feedback Topology | Yes |
| HDAM Version | SA3, SA2 |
| High Grade Audio Components | Yes |
| Customised Components | Yes |
| Symmetric PCB Layout | Yes |
| Aluminium Extrusion Heat Sink | Yes |
| Shottky Diodes | Yes |
| Control | D-Bus |
| Digital Inputs | Coaxial, Optical, USB-A |
| Max PCM Sample Rate | 192 kHz / 24-bit |
| Max DSD Sample Rate | DSD 4X (11.2 MHz) |
| HDMI | 1 ARC |
| HEOS Streaming Technologies | Bluetooth, Airplay 2, Roon Ready, Spotify Connect, Tidal Connect |
| HEOS Multiroom and Streaming | Yes |
| Lossy Formats | MP3, WMA, AAC |
| Lossless Formats | DSD/DSF, FLAC, ALAC, WAV |
| Gapless Playback | Yes |
| Network | Wi-Fi / Wired LAN: Yes / Yes |
| Display | Low-Noise OLED Monochrome |
| Preamp | Phono EQ: MM Standard |
| Subwoofer Output | 1 Mono |
| Headphone Out | Yes |
| Frequency Response | 5 Hz – 100 kHz |
| Total Harmonic Distortion | 0.02% |
| Damping Factor | 100 |
| Input Sensitivity: MM | 1.9 mV / 47 kOhm |
| Signal to Noise Ratio: MM/MC | 87 dB / – |
| Input Sensitivity: High Level | 190 mV / 20 kOhm |
| Signal to Noise Ratio: High Level | 113dB |
| Treble Control | 10 dB at 15kHz |
| Bass Control | 10 dB at 50Hz |
| Metal Front Panel | Yes |
| Power Consumption | 220 W |
| Standby Consumption | 0.3 W |
| Auto Power Off | Yes |
| Detachable Power Cable | Yes |
| Remote Control | RC006PM |
| System Remote Function | Yes |
| Maximum Dimensions | 442 x 431 x 129 mm |
| Carton Maximum Dimensions | 527 x 517 x 255 mm |
| Carton Weight | 15.5 kg |
| Weight | 28.1 lbs |
| Carton Maximum Dimensions (in) | 20.8 x 20.4 x 10.1 in |
| Carton Weight (in lbs) | 34.3 lbs |
