Description

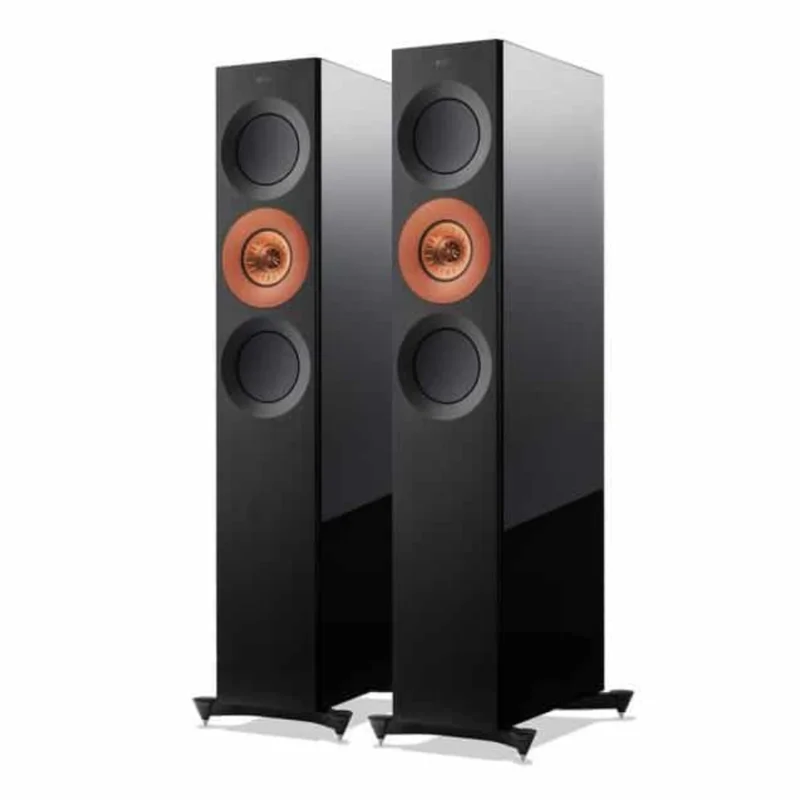

Reference 3 Meta HiFi Speakers
The Reference 3 Meta is the benchmark of HiFi speakers, delivering a sensational sound stage for a wide range of listeners. At the heart of this remarkable speaker is the 12th generation Uni-Q driver array with MAT, the latest technological development from KEF. This technology places you directly in the center of the action, providing an unparalleled listening experience.
Key Features
- Uni-Q Driver Array: 12th generation with MAT for a more accurate and immersive sound.
- Three-Way Bass Reflex Design: Ensures clear mid-range and powerful bass response.
- High Sensitivity: 86dB for more efficient sound reproduction.
- Wide Frequency Range: From 35Hz to 45kHz, ensuring rich bass and sparkling highs.
- Low Distortion: Harmonic distortion remains below 0.5% for most of the frequency range.
- Peak Sound Pressure Level: 113.5dB, offering an impressive dynamic range.
Technical Specifications
| Specification | Details |
|---|---|
| Design | Three-way bass reflex |
| Drive Units | Uni-Q driver array |
| HF Driver | 25 mm (1 in.) aluminium dome with MAT |
| MF Driver | 125 mm (5 in.) aluminium cone |
| LF Driver | 2 x 165 mm (6.5 in.) aluminium cone |
| Frequency Range | Short port: 38Hz – 45kHz, Long port: 35Hz – 45kHz |
| Frequency Range (Typical In-Room Bass Response) | 28Hz |
| Frequency Response (3dB) | 43Hz 35kHz |
| Crossover Frequency | 450 Hz, 2.1 kHz |
| Amplifier Requirements | 50 – 300W |
| Sensitivity (2.83V/1m) | 86dB |
| Harmonic Distortion (90dB, 1m) | <0.5% 40Hz 100kHz, <0.2% 200Hz 2kHz, <0.1% 2kHz – 20kHz |
| Maximum Output (Peak SPL at 1m with Pink Noise) | 113.5dB |
| Impedance | 4 (min. 3.2 ) |
| Weight | 51.3 kg (113.1 lbs.) |
| Dimensions (H x W x D) with Grille and Terminal | 1155 x 205 x 462 mm (45.5 x 8.1 x 18.2 in.) |
| Dimensions (H x W x D) with Grille, Terminal & Plinth | 1207 x 323 x 467 mm (47.5 x 12.7 x 18.4 in.) |
Downloads
- Information Sheet
- Manual
- White Paper
- Brochure
