Description
Dolby Atmos Flexible Surround

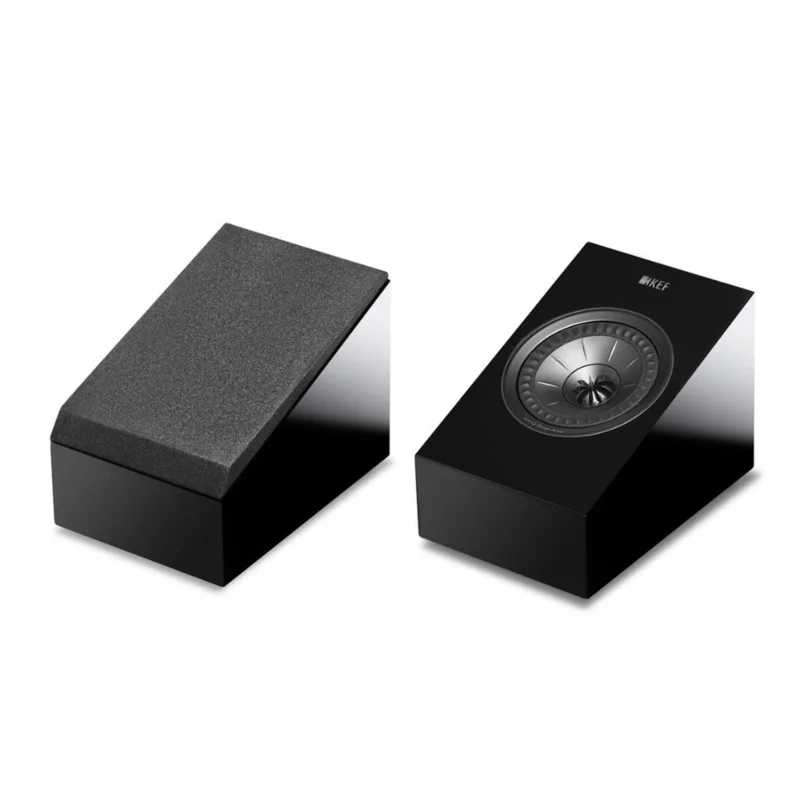

The R8a is designed to work as a surround or rear speaker, delivering a truly cinematic experience with Dolby Atmos. Its unique ability to bounce sound off the ceiling creates an immersive 3D soundstage that elevates your home theater system. Whether wall-mounted or placed on another speaker, the R8a achieves Dolby Atmos height for the ultimate in surround sound.
Key Features
- Flexible Setup: Can be wall-mounted or placed on top of another speaker for Dolby Atmos height effects.
- Uni-Q Driver Array: Features a 130mm (5.25 in.) Uni-Q array with a 25mm (1 in.) tweeter for precise sound steering and genuine 3D results.
- Cinematic Experience: Bounces sound off the ceiling for an immersive Dolby Atmos surround experience.
- Two-Way Closed Box Design: Optimized for high-quality sound reproduction.
- Compact Size: Designed to fit easily into your home theater setup without compromising performance.
Technical Specifications
| Specification | Details |
|---|---|
| Design | Two-way closed Box |
| Weight | 4.45 kg (9.8 lbs.) |
| Dimensions (H x W x D) | 173.8 x 174.6 x 259 mm (6.8 x 6.9 x 10.2 in.) with terminal |
| Dimensions (H x W x D) – Cabinet only | 173.8 x 174.6 x 255 mm |
| Sensitivity | 86dB (2.83V/1m) |
| Frequency Range | 105Hz-18.5kHz (3dB) |
| Harmonic Distortion | <0.3% (200Hz-20kHz at 90dB, 1m) |
| Maximum Output | 106dB |
| Amplifier Power | 25-150W (recommended) |
| Nominal Impedance | 8 Ohms (min. 4.2 Ohms) |
| Drive Units | Uni-Q Driver Array: HF: 25mm (1 in.) vented aluminium dome, MF/LF: 130mm (5.25 in.) aluminium cone |
| Crossover Frequencies | 2kHz |
| Finishes | Black Gloss / White Gloss |
