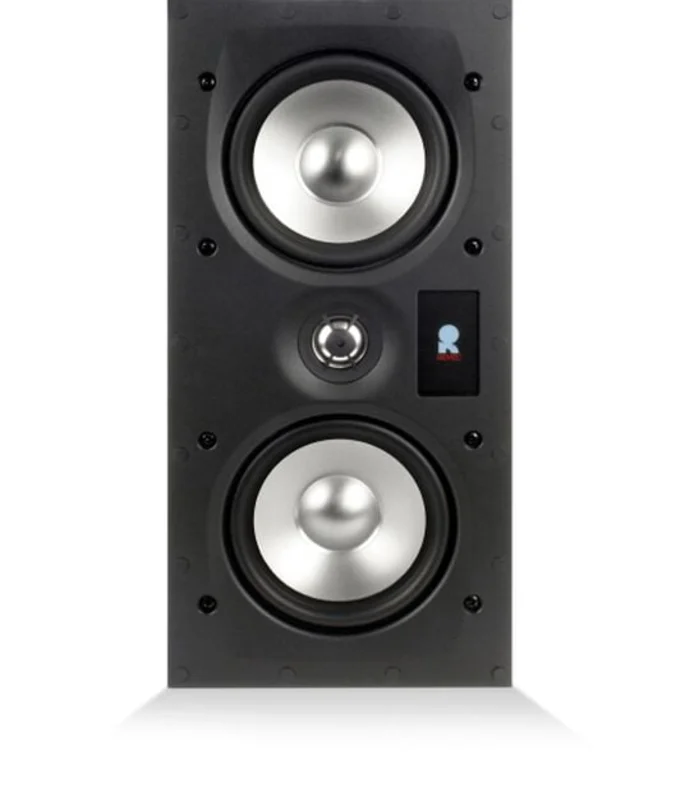

W253L LCR Suitable for Vertical or Horizontal Orientation [Install Required]

Description

Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves.

• Long-throw woofers with rubber surrounds provide high output with low distortion
• 1-inch (25mm) metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
• High-order crossover network delivers accurate timbre reproduction
• Dual-woofer model (W253L) is ideal for installation as left/center/right speakers with a wall-mounted flat-screen TV

Technical Specs

Height
Grille Finished Dimensions (H x W) 15.1″” x 7.4″” (18.8cm x 7.8cm); Cutout Dimensions (H x W) 14.1″” x 6.4″” (35.9cm x 16.3cm)

Weight
5.6 lb (2.5kg) / Shipping Weight 7.3 lb (3.3kg)

Features
C-2 Installation Mechanism; Compatible with Wall Material Thickness Range 0.5″” 2.0″” (1.3cm 2.5cm)

High-frequency Driver Components
1″” Aluminum-Dome Tweeter with Waveguide

Low-frequency Driver Components
2 x 5-1/4″” Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofers

Mounting
Mounting Depth 3.5″” (88mm)

Recommended Amplifier Power
10 – 100 Watts RMS

Sensitivity
91dB

Optional Accessories
Preconstruction Bracket and Fire-Rated Back-Box Accessories Available
