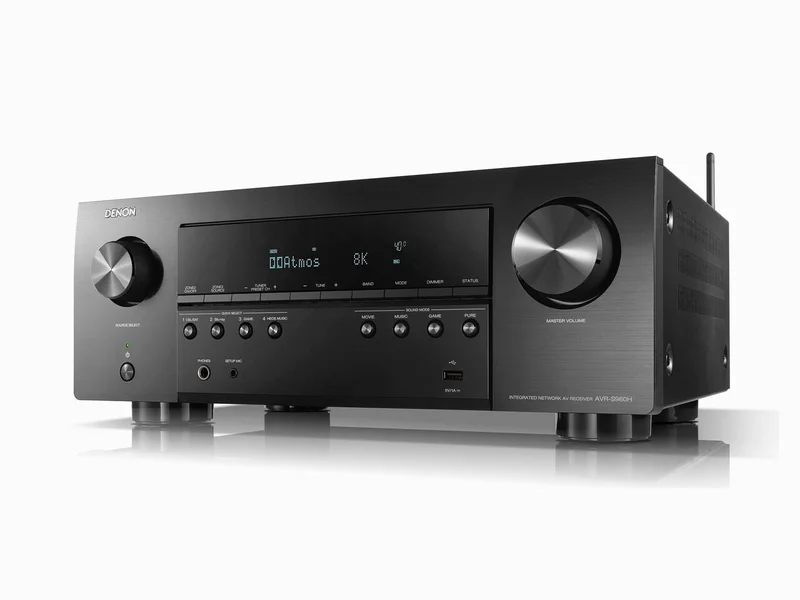

Denon AVR-S960H AV Receiver

Description

/td>

Power Output per Channel

• 2-Channel Driven: 90 W at 8 Ohms / 20 Hz to 20 kHz / 0.008% THD, 125 W at 6 Ohms / 1 kHz / 0.7% THD
• 1-Channel Driven: 145 W at 6 Ohms / 1 kHz / 0.7% THD, 185 W at 6 Ohms / 1 kHz / 10% THD

Frequency Response

10 Hz to 100 kHz +1/-3 dB (Direct Mode)

Speaker Impedance

4 to 16 Ohms

DTS Compatibility

DTS-HD Master Audio, DTS:X

Dolby Compatibility

Dolby Atmos, Dolby Pro Logic IIz, Dolby TrueHD

Auro 3D Support

No

Upmixing Technology

Dolby Surround, DTS Neural:X, DTS Virtual:X, Dolby Atmos Height Virtualization Technology

Supported File Formats

AAC, ALAC, DSD, FLAC, MP3, WAV, WMA

HDR Compatibility

HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma

Pass-Through Support

8K60p 4:4:4 (3D, BT.2020)

Upscaling

8K UHD

GUI

Yes

Rear A/V Inputs

• 6 xHDMI
• 2 x3RCA Component
• 2 xRCA Composite
• 2 xOptical TOSLINK
• 1 xDigital Coaxial
• 4 xStereo RCA
• 1 xStereo RCA (Phono) with Ground Screw

Rear A/V Outputs

• 2 xHDMI
• 1 x3RCA Component
• 1 xRCA Composite
• 2 xRCA Subwoofer

Front I/O

• 1 xUSB Type-A Input
• 1 x1/4″ / 6.35 mm Headphone Output
• 1 x1/8″ / 3.5 mm Setup Mic Input

Other Rear I/O

• 2 xBluetooth/Wi-Fi Antenna Terminal Input
• 1 xAM Antenna Terminal Input
• 1 xFM Antenna Terminal Input
• 1 xRJ45 (Ethernet)

Speaker Connectors

7 xBinding Post Pairs

HDCP Support

Version 2.3

Audio Return Channel (ARC)

Yes, eARC

HDMI CEC

Yes

Input Sensitivity

200 mV

Signal to Noise Ratio

100 dB (Direct Mode / IHF-A)

Wireless Audio Protocols

AirPlay 2, HEOS

Virtual Assistant Support

Amazon Alexa, Apple Siri, Google Assistant, Josh.ai

Tuner Type

AM, FM

Radio Frequencies

• AM: 520 to 1710 kHz
• FM: 87.5 to 107.9 MHz

AC Input Power

120 VAC, 60 Hz

Power Consumption

• Active: 500 W
• No Sound (ECO Off): 70 W
• No Sound (ECO On): 35 W
• CEC Standby: 0.5 W
• Standby: 0.1 W

Dimensions (W x H x D)

• 17.1 x 9.3 x 13.4″ / 43.4 x 23.6 x 34.0cm (Antenna Up)
• 17.1 x 6.6 x 13.4″ / 43.4 x 16.8 x 34.0cm (Antenna Down)
• 17.1 x 6.6 x 13.0″ / 43.4 x 16.8 x 33.0cm (Antenna Removed)

Weight

21lb / 9.53kg
