Description

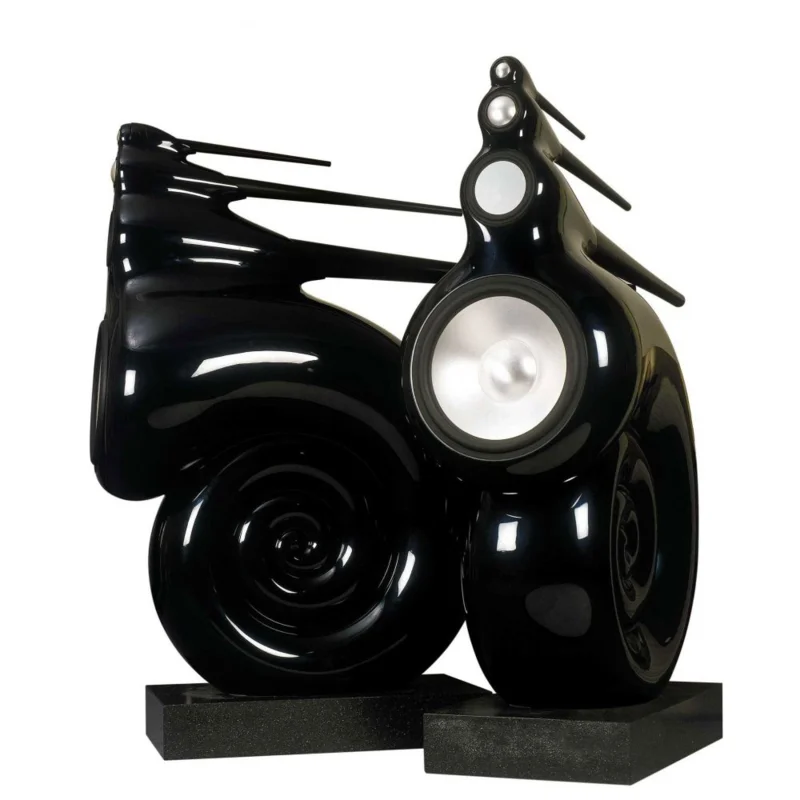

Nautilus Loudspeaker
Nothing looks, or sounds, quite like Nautilus. A revolution when it first launched 30 years ago and still an icon today, its ethos informs everything we do. Nautilus comes in three standard colors: Midnight Blue, Black, and Silver. We also offer a special service that can match any color from a sample or color reference.
Key Features
- Nautilus tube loading
- Active crossover
- 4-way tube-loaded loudspeaker system
- High-quality drive units for superior sound clarity
- Customizable color options with special service for color matching
Technical Specifications
| Feature | Specification |
|---|---|
| Drive Units | 1x 300mm (12 in) aluminium cone bass, 1x 100mm (4 in) aluminium/polymer sandwich cone lower midrange, 1x 50mm (2 in) aluminium dome upper midrange, 1x 25mm (1 in) aluminium dome high-frequency |
| Frequency Range | -6dB at 10Hz and 25kHz |
| Dispersion | Within 2dB of response on reference axis |
| Horizontal Dispersion | Over 60 arc |
| Vertical Dispersion | Over 10 arc |
| Crossover Frequency | 220Hz, 880Hz, 3.5kHz |
| Power Amplifier Requirements | 4 channels per speaker, rated 100W-300W continuous into 8 on unclipped programme (each channel to have identical gain and phase) |
| Dimensions (Height) | 1210mm (47.6 in) |
| Dimensions (Width) | 430mm (16.9 in) |
| Dimensions (Depth) | 1105mm (43.5 in) |
| Net Weight (Speaker) | 44.5kg (98lb) |
| Net Weight (Plinth) | 42kg (92lb) |
| Total Weight | 86.5kg (190lb) |
| Standard Finishes | Midnight Blue, Black, Silver |
