Description

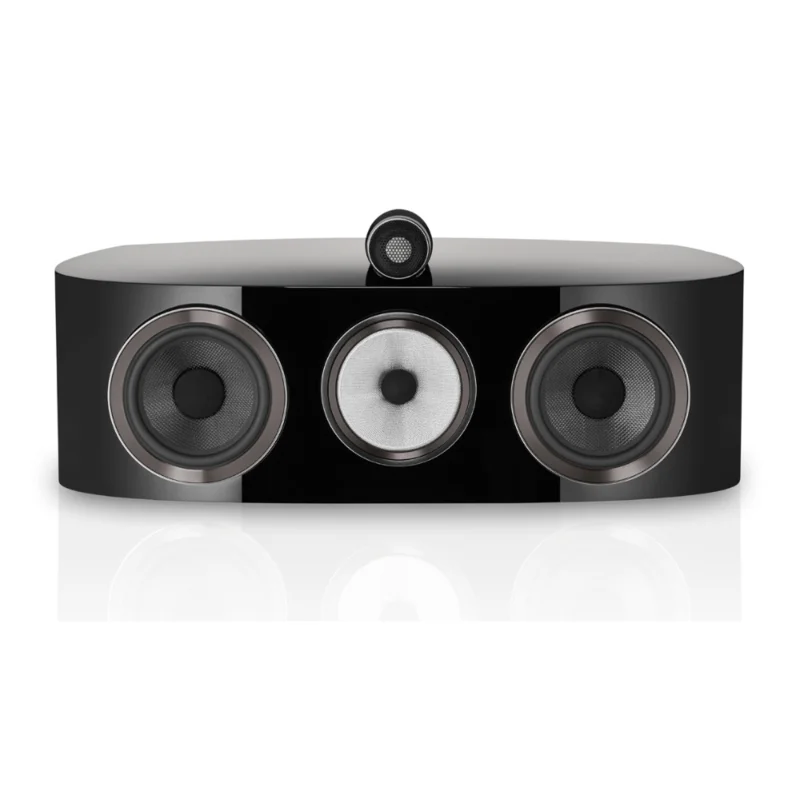

HTM82 D4 Center-Channel Speaker
The HTM82 D4 center-channel speaker is the perfect solution for theater systems built around the more compact 803 D4 or 804 D4 models. Featuring a midrange drive unit that is ideally sized to complement the specifications of its siblings, this speaker ensures an exceptional listening experience. Please note that stands are not included.
Key Features
- Compact design to match 803 D4 and 804 D4 speakers
- Diamond tweeter for clear, high-quality sound
- Continuum cone FST midrange for smooth mid frequencies
- Aerofoil cone bass units for deep, controlled bass
- Solid body Tweeter-on-Top for improved clarity
- Advanced Matrix and Anti-Resonance plug for reduced distortion
- Biomimetic Suspension for superior cone control
- Flowport for enhanced bass response and reduced turbulence
Technical Specifications
| Attribute | Details |
|---|---|
| Net weight | 25.15kg (55.4 lb) |
| Dimensions (H x W x D) | 289mm (11.4 in) x 715mm (28.1 in) x 369mm (14.5 in) |
| Drive units | 1x 25mm (1in) Diamond dome high-frequency 1x 130mm (5in) Continuum cone FST midrange 2x 165mm (6.5in) Aerofoil cone bass units |
| Frequency range | 33Hz to 35kHz |
| Frequency response | 45Hz to 28kHz (+/-3dB from reference axis) |
| Sensitivity | 89dB (on axis at 2.83Vrms at 1m) |
| Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis) <1% 100Hz 20kHz <0.3% 100Hz 20kHz |
| Nominal impedance | 8 (minimum 3.0) |
| Recommended amplifier power | 50W 200W into 8 on unclipped programme |
| Max recommended cable impedance | 0.1 |
| Finishes | Gloss Black, White |
| Grille finishes | Black, Grey |
Note: Stands are not included with this product.
