Description
Product Overview

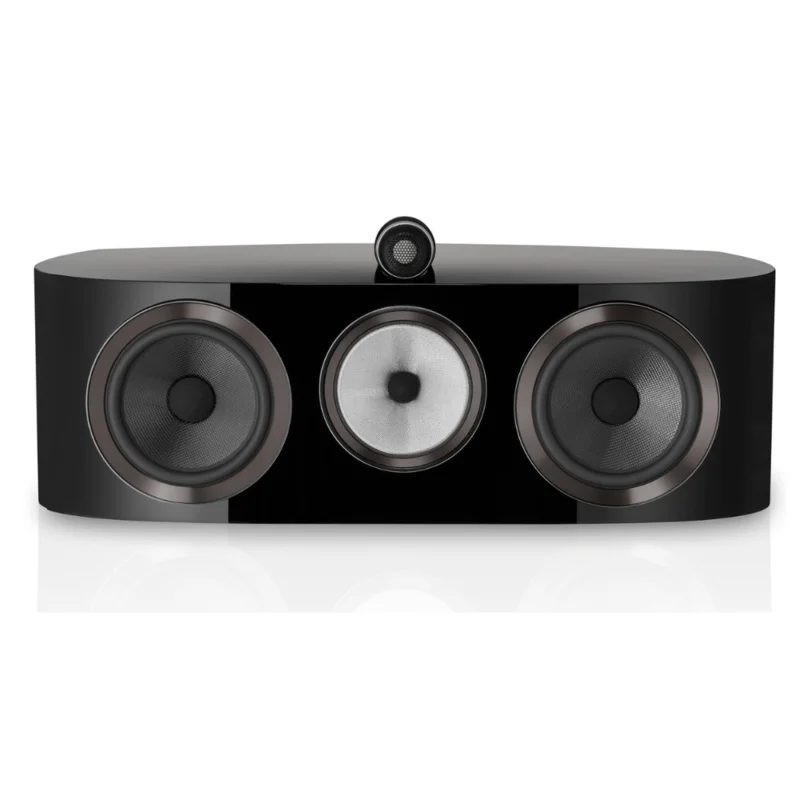

Our largest center-channel speaker is designed to partner with the 801 D4 and 802 D4. A powerful performer, it has both the scale and the midrange extension to perfectly match the quality of its illustrious stablemates. Stand(s) not included.
Key Features
- Diamond tweeter
- Solid body Tweeter-on-Top
- Continuum cone FST
- Matrix technology
- Anti-Resonance plug
- Biomimetic Suspension
- Aerofoil cone bass units
- Flowport
- 3-way vented-box system
Technical Specifications
| Specification | Details |
|---|---|
| Net Weight | 32.20kg (71 lb) |
| Dimensions | Height: 334mm (13.1 in), Width: 847mm (33.3 in), Depth: 371mm (14.6 in) |
| Frequency Range | 20Hz to 35kHz |
| Frequency Response | 28Hz to 28kHz (+/-3dB from reference axis) |
| Sensitivity | 90dB (on axis at 2.83Vrms at 1m) |
| Harmonic Distortion | 2nd and 3rd harmonics (90dB, 1m on axis) <1% 80Hz 20kHz, <0.3% 100Hz 20kHz |
| Nominal Impedance | 8 (minimum 3.0) |
| Recommended Amplifier Power | 50W 500W into 8 on unclipped programme |
| Max Recommended Cable Impedance | 0.1 |
| Cabinet Finishes | Gloss Black, White |
| Grille Finishes | Black, Grey |
