Description

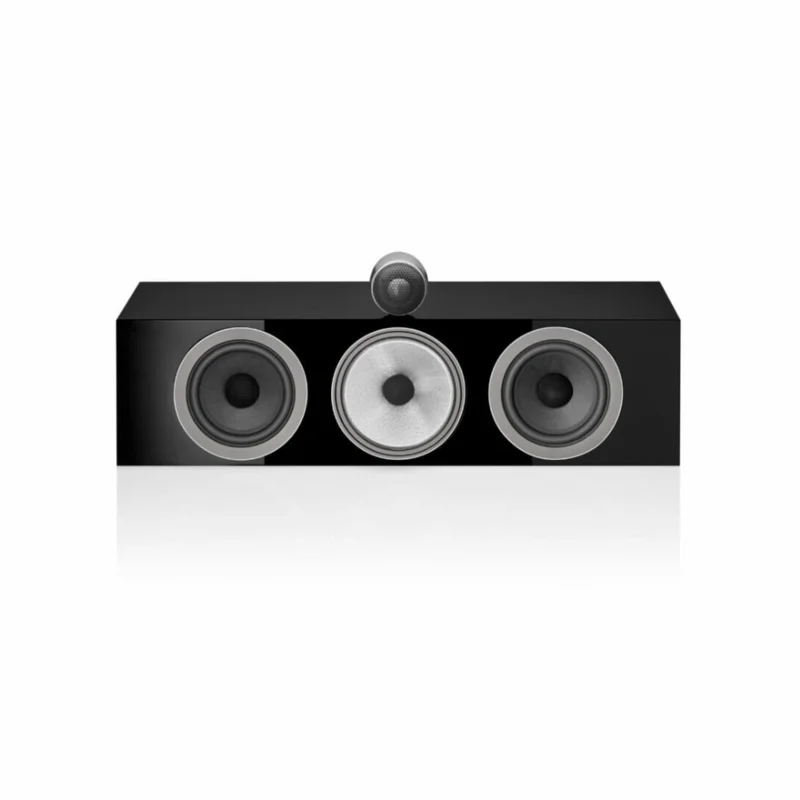

Flagship Center-Channel Speaker
Our flagship center-channel speaker features a Carbon Dome drive unit housed in a Tweeter-On-Top enclosure, a 130mm (5in) Continuum Cone FST midrange driver particularly important for clarity with dialogue and twin Aerofoil Profile bass cones. Its the perfect partner for the 705 S3, 703 S3, and 702 S3.
Key Features
- Carbon Dome drive unit for enhanced high-frequency response.
- Continuum Cone FST midrange for clear and detailed dialogue.
- Twin Aerofoil Profile bass cones for powerful low-end performance.
- Decoupled Carbon Dome tweeter for improved sound clarity.
- Designed to complement the 705 S3, 703 S3, and 702 S3 speakers.
- Available in Gloss Black, Satin White, and Mocha finishes.
- Solid Body Tweeter-on-Top for optimal sound dispersion.
Technical Specifications
| Specification | Details |
|---|---|
| Net Weight | 17.45kg (38.5 lb) |
| Dimensions (Height x Width x Depth) | Height: 165 mm (6.5 in) cabinet only Width: 628 mm (24.7 in) cabinet only Depth: 318 mm (12.5 in) cabinet only 356 mm (14.0 in) including grille and terminals |
| Drive Units | 1x 25mm (1 in) Decoupled Carbon Dome high-frequency 1x 130mm (5 in) Continuum cone FST midrange 2x 130mm (5 in) Aerofoil Profile bass |
| Frequency Range | 45Hz to 33kHz |
| Frequency Response | 50Hz – 28kHz 3dB |
| Harmonic Distortion | 2nd and 3rd harmonics (90dB, 1m on axis) <1% 90Hz – 22kHz <0.5% 120Hz – 20kHz |
| Nominal Impedance | 8 (minimum 3.1) |
| Recommended Amplifier Power | 30W – 200W into 8 on unclipped programme |
| Sensitivity | 89dB spl (2.83Vrms, 1m) |
| Technical Features | Decoupled Carbon Dome tweeter Solid Body Tweeter-on-Top Continuum cone FST midrange Aerofoil Profile bass cones Flowport |
| System Type | 3-way vented-box system |
| Max Recommended Cable Impedance | 0.1 |
| Cabinet Finishes | Gloss Black, Satin White, Mocha |
| Grille Finishes | Black, Grey (Satin White only) |
