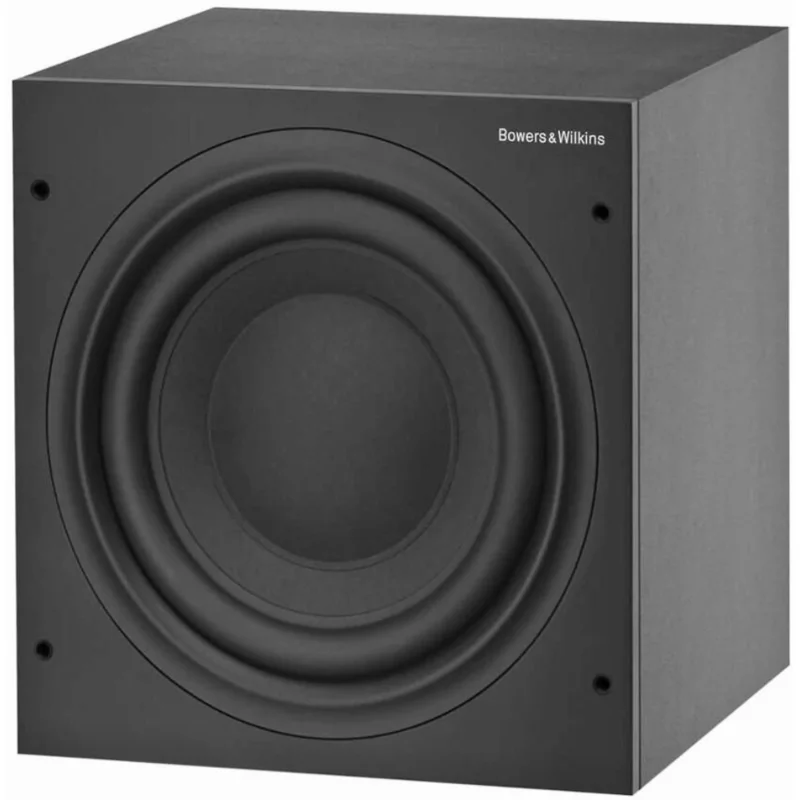

ASW610XP – Powerful Subwoofer for Larger Rooms
The ASW610XP, the most powerful of the AWS Series subwoofers, is designed to deliver the ultimate audio experience, adding the finishing touch or finishing thump to your hi-fi or home theater system. Ideal for larger rooms, this subwoofer boasts exceptional sound quality and powerful bass, bringing your entertainment to life with deep, impactful sound.
Key Features
- High-Powered Performance: Delivers an exceptional level of bass for larger spaces.
- Precision Engineering: A 10-inch long-throw aramid fibre cone ensures high output with minimal distortion.
- Adjustable Frequency Response: Frequency response adjustable between 25Hz to 140Hz for tailored sound.
- Advanced Connectivity: Multiple input options including line-in, speaker-in, and 12v trigger.
- Auto Sense On/Standby: Automatically powers on when a signal is detected and goes into standby mode when inactive.
Technical Specifications
| Specification | Details |
|---|---|
| Net Weight | 18.65 kg (41.12 lb) |
| Dimensions (Height) | 325mm (12.8in) excluding feet or spikes, 337mm (13.3in) including feet, 353mm (13.9in) including spikes |
| Dimensions (Width) | 325mm (12.8in) |
| Dimensions (Depth) | 348mm (13.68in) excluding grilles, 375mm (14.8in) including grilles and controls |
| Drive Unit | 250mm (10 in) Paper / Aramid fibre cone long-throw |
| Frequency Response | 3dB 25Hz 40 / 140Hz adjustable (EQ at A) |
| Input Level (Line In) | Adjustable |
| Input Level (Speaker In) | Adjustable |
| Low-Pass Filter Frequency (Line In only) | Active 4th-order, variable cut-off frequency |
| Low-Pass Filter Bypass | Yes |
| Bass Extension | -6dB at 18Hz (Position A), -6dB at 23Hz (Position B), -6dB at 28Hz (Position C) |
| Bass Roll-Off Alignment | Adjustable |
| Auto Sense On/Standby | Yes |
| Phase Switch | Yes |
| Frequency Range | -6dB at 18Hz and 25 / 140Hz adjustable (EQ at A) |
| Inputs | Line in (RCA Phono), Speaker in (Binding post), 12v trigger (3.5mm jack) |
| Power Consumption | 98W / 1W standby |
| Input Impedance | 33k |
| Signal / Noise | >80dB |
