Description

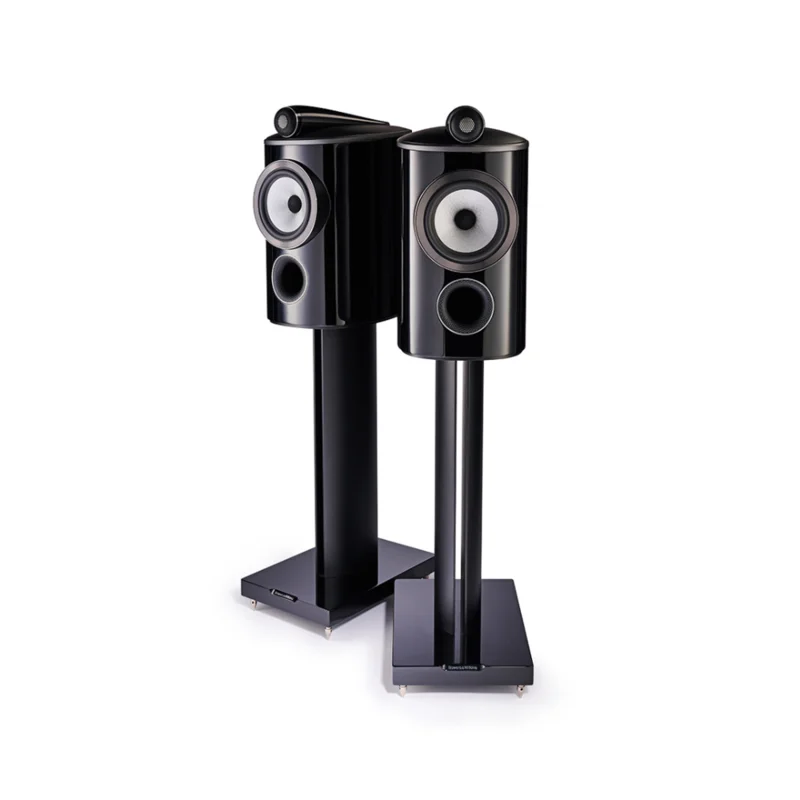

805 D4 Stand-Mount Loudspeaker
The 805 D4 stand-mount loudspeaker is the most compact model in the 800 Series Diamond range, but its still packed with advanced technologies, including the Diamond dome tweeter and the Solid Body Tweeter-on-Top. This high-performance speaker delivers exceptional sound quality, offering clarity and precision in every note. Stand(s) not included.
Key Features
- Diamond Dome Tweeter: Provides unmatched clarity and detail in high frequencies.
- Solid Body Tweeter-on-Top: Delivers enhanced performance and sound dispersion.
- Continuum Cone Bass/Mid: Offers a balanced and natural sound with excellent midrange response.
- Matrix Technology: Ensures structural rigidity, reducing vibrations and improving sound accuracy.
- Anti-Resonance Plug: Reduces unwanted resonances to ensure clean and pure sound.
- Flowport: Optimizes airflow for better bass response and reduced distortion.
Technical Specifications
| Size & Weight | 15.55kg (34.3 lb) |
|---|---|
| Dimensions | Height: 440mm (17.3 in), Width: 240mm (9.4 in), Depth: 373mm (14.7 in) |
| Technical Features | Diamond tweeter, Solid body Tweeter-on-Top, Continuum cone bass/mid, Matrix, Anti-Resonance plug, Flowport |
| Description | 2-way vented-box system |
| Drive Units | 1x 25mm (1in) Diamond dome high-frequency, 1x 165mm (6.5in) Continuum cone bass midrange |
| Frequency Range | 34Hz to 35kHz |
| Frequency Response | 42Hz to 28kHz (+/-3dB from reference axis) |
| Sensitivity | 88dB (on axis at 2.83Vrms at 1m) |
| Harmonic Distortion | 2nd and 3rd harmonics (90dB, 1m on axis): <1% 90Hz 20kHz, <0.3% 120Hz 20kHz |
| Nominal Impedance | 8 (minimum 4.6) |
| Recommended Amplifier Power | 50W 120W into 8 on unclipped programme |
| Max Recommended Cable Impedance | 0.1 |
| Cabinet Finishes | Gloss Black, White, Satin Rosenut, Satin Walnut |
| Grille Finishes | Black, Grey |
