Description

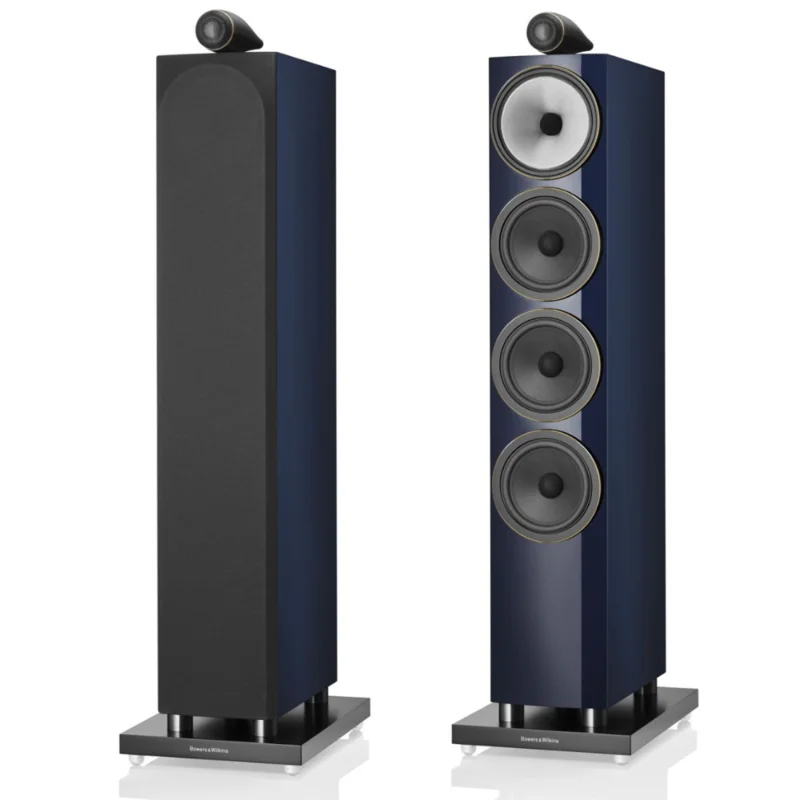

702 S3 Signature Tower Loudspeaker
The 702 S3 Signature takes our state-of-the-art flagship 700 Series tower loudspeaker and evolves it to deliver unparalleled levels of performance. A seamless blend of advanced engineering, fine-tuned design, and premium materials, the 702 S3 Signature offers a new dimension of clarity, precision, and musicality.
Key Features
- Decoupled Carbon Dome Tweeter – For high-frequency precision and clarity.
- Solid Body Tweeter-on-Top – Ensures ideal sound dispersion.
- Continuum Cone FST Midrange – Delivers pure and natural midrange frequencies.
- Aerofoil Profile Bass Cones – Provides deep and controlled bass response.
- Flowport – Optimizes airflow for a smooth and accurate low-frequency performance.
- Elegant Finishes – Available in Datuk Gloss and Midnight Blue Metallic cabinet finishes, with a Black grille finish.
Technical Specifications
| Specification | Details |
|---|---|
| Net Weight | 35.26 kg (77.7 lbs) |
| Dimensions | Height: 1010mm (39.8in) cabinet only 1138mm (44.8in) including tweeter and plinth Width: 192mm (7.6in) cabinet only 290mm (11.4in) including plinth Depth: 354mm (13.9in) cabinet only 391mm (15.4in) including grille and terminals 410mm (16.1in) including plinth |
| Drive Units | 1x 25mm (1 in) Decoupled Carbon Dome high-frequency 1x 150mm (6 in) Continuum cone FST midrange 3x 165mm (6.5 in) Aerofoil Profile bass |
| Frequency Range | -6dB 28Hz – 33kHz |
| Frequency Response | 46Hz – 28kHz 3dB |
| Harmonic Distortion | 2nd and 3rd harmonics (90dB, 1m on axis) <1% 86Hz – 28kHz <0.5% 110Hz – 20kHz |
| Nominal Impedance | 8 (minimum 3.1) |
| Recommended Amplifier Power | 30W – 300W into 8 on unclipped programme |
| Sensitivity | 90dB |
| Technical Features | Decoupled Carbon Dome tweeter Solid Body Tweeter-on-Top Continuum cone FST midrange Decoupled midrange Aerofoil Profile bass cones Flowport |
| Max Recommended Cable Impedance | 0.1 |
| Finishes | Cabinet finishes: Datuk Gloss, Midnight Blue Metallic Grille finishes: Black |
